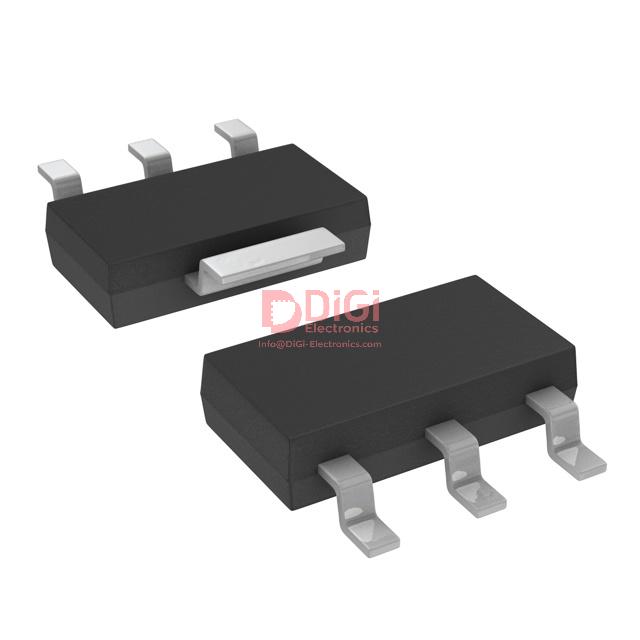

IRLL014 The Infineon Technologies IRLL014NTRPBF is an N-Channel MOSFET with a 55V drain-source voltage and 2A continuous drain current. It is supplied in a SOT-223 surface mount package.
Mfr Part #:

IRLL014

Available from 1 distributors
Mfr Name: Fremont Micro Devices Ltd
Fremont Micro Devices Ltd
The Infineon Technologies IRLL014NTRPBF is an N-Channel MOSFET with a 55V drain-source voltage and 2A continuous drain current. It is supplied in a SOT-223 surface mount package.
✓ Total Stock: 109 pcs
$ Price Range: $2.23

IRLL014 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
109 pcs
On Request
109 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IRLL014 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Gate Charge
Input Capacitance
Mounting Type
Power Dissipation
View Similar Products (0)

IRLL014 Description

Short technical summary and product information.

This N-Channel MOSFET from Infineon Technologies, part number IRLL014NTRPBF, is designed for various electronic applications. It features a maximum drain-source voltage of 55V and a continuous drain current of 2A at 25°C.



The MOSFET operates with a gate drive voltage range of 4V to 10V, and its on-resistance is specified as a maximum of 140mOhm at 2A and 10V. The gate threshold voltage is typically 2V at 250µA, and the gate charge is a maximum of 14nC at 10V. The maximum gate-source voltage is ±16V.



Packaged in a SOT-223 surface mount case, this component is suitable for applications requiring compact designs. The power dissipation is rated at 1W. The HEXFET® series designation indicates its advanced technology.



Key electrical characteristics include an input capacitance of 230pF at 25V. The component is specified with RoHS3 compliance and an MSL rating of 1.

IRLL014 Quick Information

Product Type: MOSFET
Series: HEXFET®
Canonical Name: IRLL014 N-Channel MOSFET
Subcategory: Single FETs, MOSFETs

IRLL014 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IRLL014 Estimated Pricing

Qty Low High
1+ $2.23 $2.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

IRLL014 Features

  • N-Channel MOSFET technology.
  • 55V drain-to-source voltage rating.
  • 2A continuous drain current.
  • 140mOhm maximum on-resistance.
  • SOT-223 surface mount package.

IRLL014 Applications

  • Used in power regulation circuits
  • Suitable for switching applications
  • Provides current regulation in electronic devices
  • Ideal for compact power management modules

IRLL014 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the drain-to-source voltage rating?

The drain-to-source voltage rating is 55V.

What is the continuous drain current?

The continuous drain current is 2A at 25°C.

What is the maximum on-resistance?

The maximum on-resistance is 140mOhm at 2A and 10V.

What is the gate threshold voltage?

The gate threshold voltage is 2V at 250µA.

What is the package type?

The package type is SOT-223.

What is the mounting type?

The mounting type is Surface Mount.
