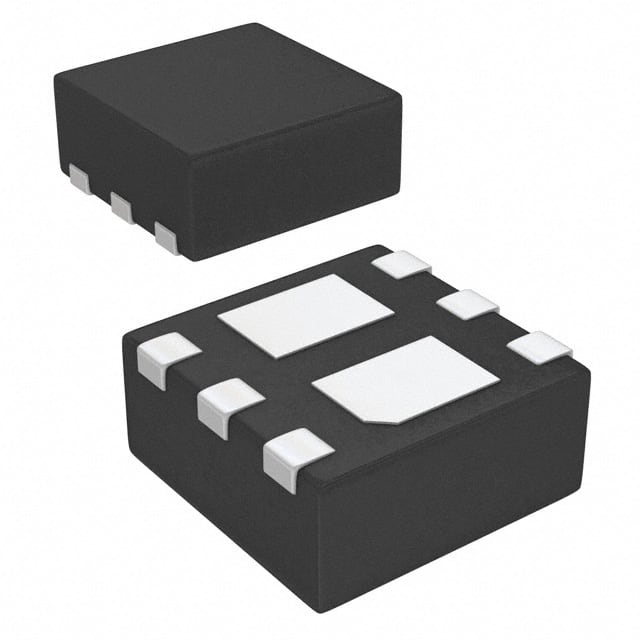

The IRLHS6276TRPBF is a dual N-channel MOSFET from Infineon Technologies, designed for space-constrained power management applications. It features a maximum drain-source voltage of 20V and a continuous drain current of 4.5A at 25°C ambient (3.4A at case temperature 25°C). The device offers low on-resistance of 45mOhm at VGS=4.5V and 62mOhm at VGS=2.5V, enabling efficient switching in low-voltage circuits.
The logic-level gate drive allows direct interfacing with 2.5V and 4.5V logic, simplifying driver design. With a maximum gate charge of 3.1nC and input capacitance of 310pF, the device is suitable for high-frequency switching applications. The dual configuration integrates two N-channel MOSFETs in a single 6-PQFN (2x2) package, saving board space and reducing component count.
The device is RoHS compliant and halogen-free, meeting environmental standards. It operates over a junction temperature range of -55°C to 150°C, making it suitable for a wide range of operating environments. The surface-mount package is compatible with standard reflow soldering processes, facilitating automated assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.94 | $0.94 |
| 10+ | $0.59 | $0.59 |
| 100+ | $0.38 | $0.38 |
| 500+ | $0.29 | $0.29 |
| 1,000+ | $0.26 | $0.26 |
| 2,000+ | $0.24 | $0.24 |
| 4,000+ | $0.22 | $0.22 |
| 8,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 20V.
The maximum continuous drain current is 4.5A at TA=25°C with VGS=4.5V.
The maximum on-resistance is 45mOhm at VGS=4.5V and ID=3.4A.
The operating junction temperature range is -55°C to 150°C.
Yes, the device is RoHS3 compliant and also halogen-free.
It is available in a 6-VQFN surface-mount package, specifically 6-PQFN (2x2).
