The IRLHS6242TRPBF is an N-Channel power MOSFET from Infineon Technologies, designed for low-voltage switching applications. It features a drain-to-source voltage (Vdss) of 20V and a maximum gate-to-source voltage of ±12V. The device delivers a continuous drain current of 10A at 25°C ambient temperature and 12A at 25°C case temperature, with a pulsed drain current capability of 100A.
The MOSFET utilizes advanced HEXFET technology, offering low on-resistance: 11.7mOhm maximum at a gate drive of 4.5V and 15.5mOhm at 2.5V. It has a typical gate charge of 14nC at 4.5V and an input capacitance of 1110pF at 10V drain-source, enabling efficient switching performance.

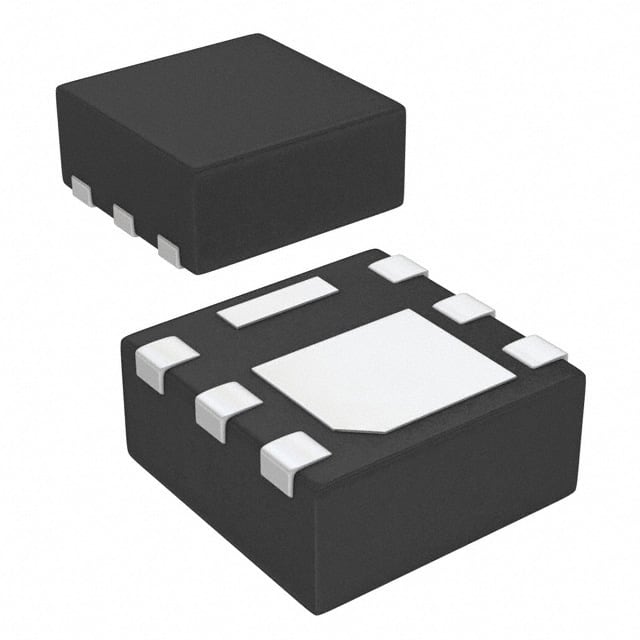

Housed in a compact 6-PowerVDFN package (6-PQFN 2mm x 2mm), the component is surface-mountable and suitable for space-constrained designs. It operates over a junction temperature range of -55°C to 150°C, with maximum power dissipation of 1.98W at ambient and 9.6W at case temperature.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.09 | $1.09 |
| 10+ | $0.62 | $0.62 |
| 100+ | $0.41 | $0.41 |
| 500+ | $0.33 | $0.33 |
| 1,000+ | $0.29 | $0.29 |
| 2,000+ | $0.27 | $0.27 |
| 4,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage is 20V.
Continuous drain current is 10A at 25°C ambient and 12A at 25°C case temperature.
Maximum on-resistance is 11.7mOhm at 8.5A drain current and 4.5V gate drive, and 15.5mOhm at 2.5V gate drive.
The package is 6-PowerVDFN, also known as 6-PQFN (2x2mm).
The operating junction temperature range is -55°C to 150°C.
The maximum gate-to-source voltage is ±12V.
