IRIS4013K The Infineon Technologies IRIS4013K is an integrated switcher with a 650V MOSFET, suitable for AC/DC power supplies. It operates with primary current mode and secondary voltage mode control.
Mfr Part #:

IRIS4013K

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies IRIS4013K is an integrated switcher with a 650V MOSFET, suitable for AC/DC power supplies. It operates with primary current mode and secondary voltage mode control.
✓ Total Stock: 50 pcs
$ Price Range: $0.75

IRIS4013K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request 2001 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IRIS4013K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Junction Temperature
Mounting Type
Number of Outputs
Operating Temperature
Operating Voltage
Output Power
Package / Case
SVHC Present
Storage Temperature
Supplier Device Package
Voltage
View Similar Products (0)

IRIS4013K Description

Short technical summary and product information.

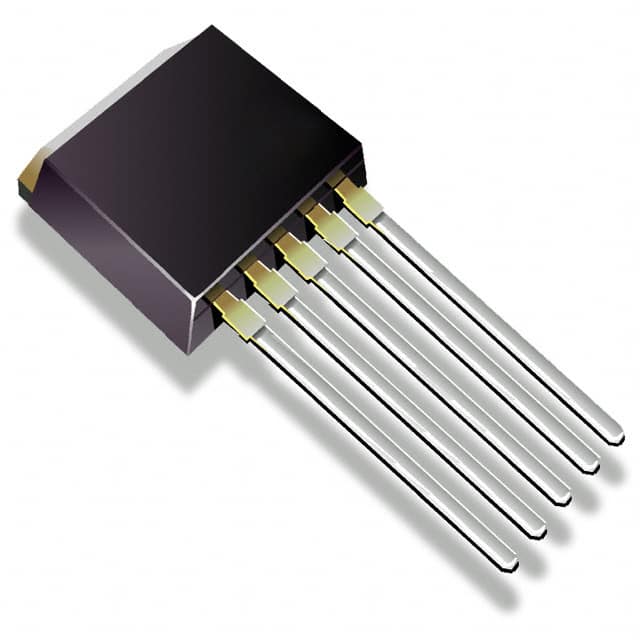

The IRIS4013K from Infineon Technologies is a versatile integrated switcher combining a voltage and current controller with a MOSFET in a single TO-262-5 package. Designed for AC/DC switching power supplies, it supports nominal input voltages up to 230VAC and can handle powers up to 120W for universal input applications.



This device operates on a quasi-resonant or Pulse Ratio Control (PRC) basis, enabling variable frequency operation. Key features include primary current mode control, secondary voltage mode control, and integrated protections such as Vcc over-voltage (latched), over-current, and over-temperature protection. The MOSFET offers a maximum Rds(on) of 1.95 Ohms and a voltage rating of 650V, with fully characterized avalanche energy.



With a through-hole mounting type, the IRIS4013K is suitable for applications requiring robust power management. Its operating temperature range is -20°C to 125°C, and it is supplied in a TO-262-5 package. The device is designed for efficiency and reliability in power supply designs.

IRIS4013K Quick Information

Product Type: Integrated Switcher
Canonical Name: IRIS4013K Integrated Switcher
Subcategory: Special Purpose Regulators

IRIS4013K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IRIS4013K Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

IRIS4013K Features

  • Integrated voltage and current controller with MOSFET.
  • Designed for AC/DC switching power supplies.
  • 650V MOSFET with 1.95 Ohm Rds(on) max.
  • TO-262-5 package for through-hole mounting.
  • Over-current and over-temperature protection.

IRIS4013K Applications

  • Used in AC/DC switching power supplies.
  • Suitable for universal input applications.
  • Enables variable frequency operation.
  • Provides integrated protection features.

IRIS4013K FAQs

7 frequently asked questions generated from this part’s specifications.
What is the nominal operating voltage for this regulator?

The nominal input voltage is 230VAC.

What package does the IRIS4013K come in?

It is available in a TO-262-5 through-hole package.

What is the operating temperature range?

The ambient operating temperature range is -20°C to 125°C.

What is the maximum switching current?

The maximum switching current is 5.1A.

What is the peak drain current rating?

The peak drain current is 12.8A (single pulse).

What output power can this regulator handle?

It is capable of powers up to 120W for a universal input.

What is the single pulse avalanche energy rating?

The single pulse avalanche energy is 397mJ at ILpeak=5.1A.
