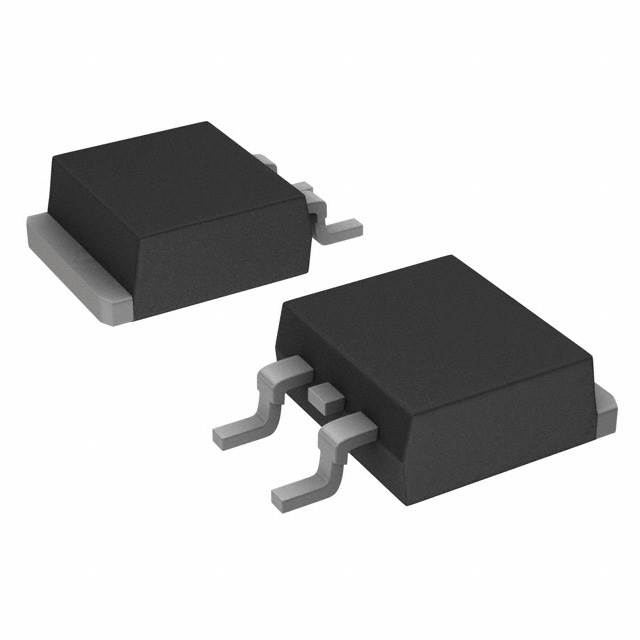

IRFS23N20DPBF The Infineon IRFS23N20DPBF is an N-Channel MOSFET designed for power applications. It features a 200V drain-source voltage and a continuous drain current of 24A.
Mfr Part #:

IRFS23N20DPBF

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon IRFS23N20DPBF is an N-Channel MOSFET designed for power applications. It features a 200V drain-source voltage and a continuous drain current of 24A.
✓ Total Stock: 13,533 pcs

IRFS23N20DPBF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
13,533 pcs
On Request
13533 pcs On Request 1 On Request On Request 19+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IRFS23N20DPBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
FET Type
Gate Charge
Input Capacitance
Lead Style
Package / Case
Technology
View Similar Products (0)

IRFS23N20DPBF Description

Short technical summary and product information.

The Infineon IRFS23N20DPBF is a high-performance N-Channel MOSFET from the HEXFET® series. It is designed for various power switching applications, offering a robust 200V drain-to-source voltage and a continuous drain current capability of 24A at 25°C.



Key electrical characteristics include a maximum on-state resistance of 100mOhm at 14A and 10V, a gate threshold voltage of 5.5V at 250µA, and a maximum gate-source voltage of ±30V. The MOSFET also has a typical gate charge of 86 nC at 10V and an input capacitance of 1960 pF at 25V.



This component is housed in a D2PAK package, suitable for surface mounting. Its metal-oxide technology ensures efficient operation in demanding environments. The part status is listed as discontinued, indicating it may be end-of-life or have limited availability.

IRFS23N20DPBF Quick Information

Product Type: MOSFET
Series: HEXFET®
Canonical Name: Infineon IRFS23N20DPBF N-Channel MOSFET
Subcategory: Single FETs

IRFS23N20DPBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

IRFS23N20DPBF Features

  • 200V drain-to-source voltage rating.
  • 24A continuous drain current capability.
  • Low 100mOhm maximum on-state resistance.
  • N-Channel MOSFET technology.
  • D2PAK surface mount package.

IRFS23N20DPBF Applications

  • Suitable for power switching circuits.
  • Used in high-current applications.
  • Ideal for DC-DC converters.
  • Applicable in motor control systems.

IRFS23N20DPBF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-to-source voltage rating?

200V.

What is the continuous drain current?

24A at 25°C.

What is the on-state resistance?

100mOhm maximum at 14A, 10V.

What is the gate threshold voltage?

5.5V maximum at 250µA.

What is the typical gate charge?

86nC at 10V.

What is the input capacitance?

1960pF at 25V.

What is the package type?

D2PAK.
