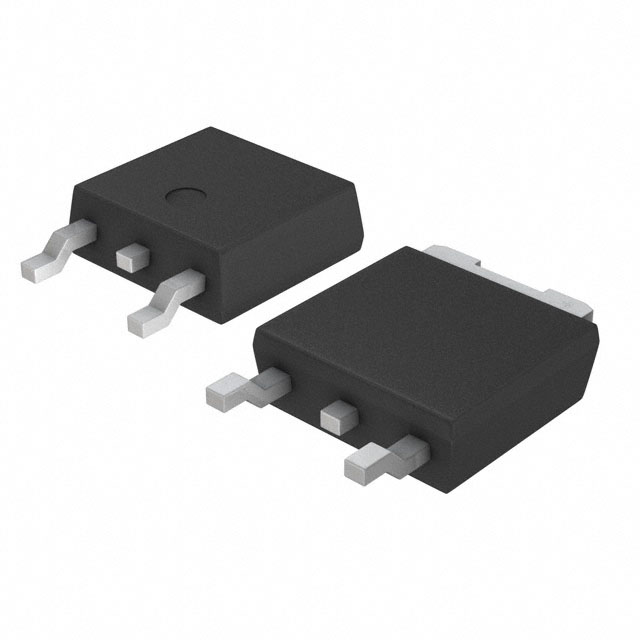

IRFR9024TRPBF P-Channel power MOSFET with 60V drain-source voltage and 8.8A continuous drain current. Features 280mΩ on-resistance and surface-mount DPAK package.
Mfr Part #:

IRFR9024TRPBF

Available from 4 distributors
Mfr Name: Vishay
Vishay
P-Channel power MOSFET with 60V drain-source voltage and 8.8A continuous drain current. Features 280mΩ on-resistance and surface-mount DPAK package.
✓ Total Stock: 358,428 pcs

IRFR9024TRPBF Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
348,000 pcs
On Request
348000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,020 pcs
On Request
7020 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
2,408 pcs
On Request
2408 pcs On Request 1 On Request On Request 1336+ On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IRFR9024TRPBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Lead Style
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
SVHC Present
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

IRFR9024TRPBF Description

Short technical summary and product information.

The IRFR9024TRPBF is a P-Channel power MOSFET from Vishay, designed for efficient switching and power management applications. It offers a maximum drain-source voltage of 60V and a continuous drain current of 8.8A at 25°C case temperature, with a low on-resistance of 280mΩ at 10V gate drive.



This MOSFET features fast switching performance, repetitive avalanche rating, and a dynamic dV/dt rating, making it suitable for ruggedized designs. The total gate charge is 19nC, with input capacitance of 570pF, enabling efficient gate drive requirements.



The device is housed in a surface-mount DPAK (TO-252) package, compatible with vapor phase, infrared, or wave soldering. It is rated for operation from -55°C to 150°C junction temperature and is lead (Pb)-free and RoHS compliant.

IRFR9024TRPBF Quick Information

Product Type: Power MOSFET
Canonical Name: IRFR9024TRPBF P-Channel Power MOSFET
Subcategory: P-Channel Power MOSFET

IRFR9024TRPBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead (Pb)-free

IRFR9024TRPBF Features

  • P-Channel MOSFET with 60V drain-source voltage.
  • 8.8A continuous drain current at 25°C case temperature.
  • Low on-resistance of 280mΩ at 10V gate drive.
  • Fast switching with 19nC total gate charge.
  • Surface-mount DPAK package for compact designs.

IRFR9024TRPBF Applications

  • Ideal for high-side load switching applications.
  • Used in DC-DC converter and power supply designs.
  • Suitable for battery management and protection circuits.
  • Applicable in automotive and industrial power systems.

IRFR9024TRPBF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the IRFR9024TRPBF?

The maximum drain-source voltage (Vdss) is 60V.

What is the continuous drain current rating?

The continuous drain current is 8.8A at Tc=25°C and 5.6A at Tc=100°C.

What is the on-resistance of this MOSFET?

The maximum on-resistance (Rds On) is 280mΩ at Id=5.3A and Vgs=10V.

What package does the IRFR9024TRPBF come in?

It is available in a TO-252-3, DPak (2 Leads + Tab), SC-63 surface-mount package, with supplier device package D-Pak.

What is the operating temperature range?

The operating junction temperature range is -55°C to 150°C.

Is the IRFR9024TRPBF RoHS compliant?

Yes, it is RoHS3 compliant and lead (Pb)-free.

What is the gate threshold voltage?

The maximum gate threshold voltage (Vgs(th)) is 4V at Id=250µA.
