| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
640 pcs
|
640 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

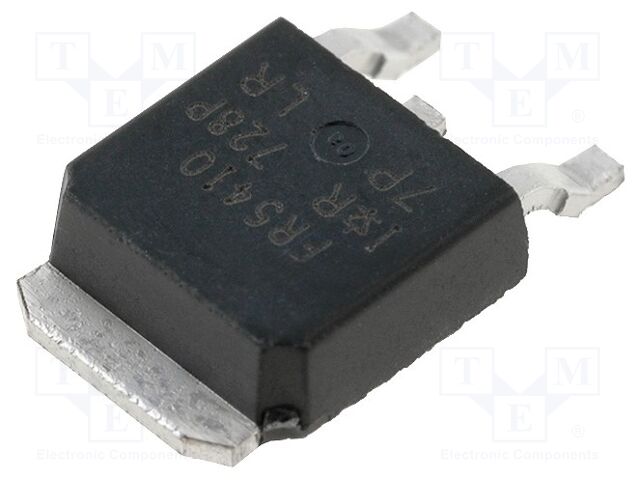

The IRFR5410PBF is a P-Channel MOSFET from Infineon Technologies designed for power management applications. It features a maximum drain-source voltage of 100V and a continuous drain current of 13A at case temperature. The on-resistance is typically 205 milliohms at 7.8A drain current and 10V gate drive.
This MOSFET offers a gate threshold voltage of 4V and a total gate charge of 58 nC at 10V, enabling efficient switching. Input capacitance is 760 pF at 25V drain-source voltage. Maximum power dissipation is 66W at case temperature. The device operates over a junction temperature range of -55°C to 150°C.
The IRFR5410PBF is supplied in a surface mount DPAK package (TO-252-3, DPak, SC-63). It is suitable for automated assembly and space-constrained designs.
100V.
TO-252-3, DPak (2 Leads + Tab), SC-63 surface mount package.
-55°C to 150°C (junction).
RoHS3 compliant (unverified).
