| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,020 pcs
|
7020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

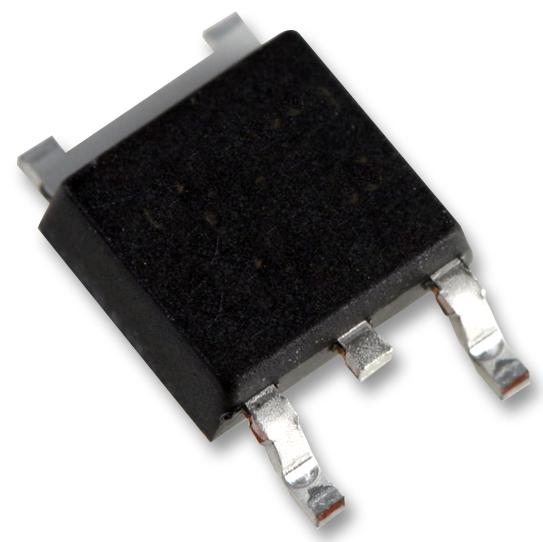

The IRFR4615TRLPBF is a surface-mount N-Channel power MOSFET from Infineon Technologies, part of the HEXFET family. It features a maximum drain-source voltage of 150V and a continuous drain current of 33A at 25°C case temperature, with a typical on-resistance of 34 mOhm. The device offers enhanced gate, avalanche, and dynamic dV/dt ruggedness, making it suitable for high-speed power switching applications.
This MOSFET is characterized for capacitance and avalanche SOA, and includes a fully characterized body diode with enhanced dV/dt and dI/dt capability. It supports a pulsed drain current of 140A and a maximum power dissipation of 144W at 25°C case temperature, with a junction-to-case thermal resistance of 1.045 °C/W.
The IRFR4615TRLPBF is packaged in a DPAK (TO-252-3) surface-mount package and is supplied in tape and reel packaging with a standard pack quantity of 3000. It is lead-free and RoHS compliant based on the datasheet.
150V.
33A at Tc=25°C.
34 mOhm at Id=21A, Vgs=10V.
DPAK (TO-252-3) surface-mount package.
-55°C to 175°C.
Yes, it is lead-free as confirmed by the datasheet.
