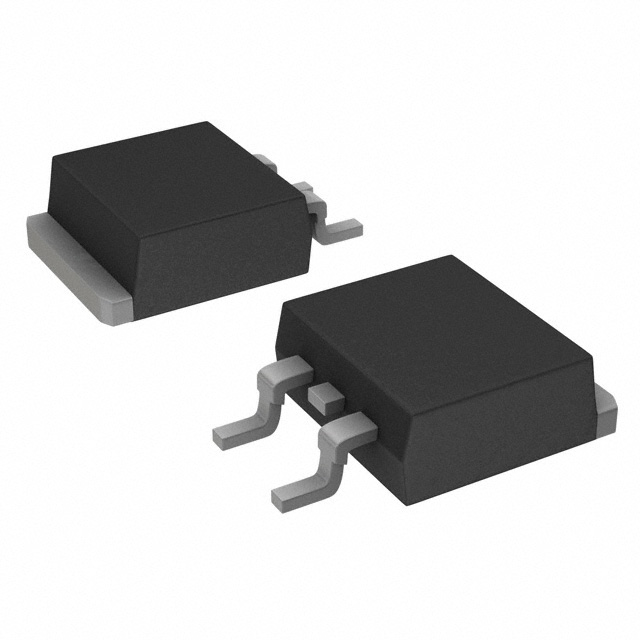

IRFR430ATRPBF IRFR430ATRPBF is an N-Channel power MOSFET rated for 500V drain-source voltage and 5A continuous drain current. Offered in a surface-mount DPAK package.
Mfr Part #:

IRFR430ATRPBF

Available from 3 distributors
Mfr Name: Vishay
Vishay
IRFR430ATRPBF is an N-Channel power MOSFET rated for 500V drain-source voltage and 5A continuous drain current. Offered in a surface-mount DPAK package.
✓ Total Stock: 241,440 pcs

IRFR430ATRPBF Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
210,000 pcs
On Request
210000 pcs On Request 1 On Request On Request On Request On Request On Request
Risen Electronics ✓
Non-Authorised Inventory information
28,000 pcs
On Request
28000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
Smaxon Electronics ✓
Non-Authorised Inventory information
3,440 pcs
On Request
3440 pcs On Request 1 On Request On Request 07+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IRFR430ATRPBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

IRFR430ATRPBF Description

Short technical summary and product information.

The IRFR430ATRPBF is an N-Channel enhancement-mode power MOSFET from Vishay Siliconix designed for high-voltage switching applications.



This MOSFET features a drain-source voltage (Vdss) of 500V and a continuous drain current of 5.0A at 25°C, with a maximum on-resistance of 1.7 Ohm at Vgs = 10V. It offers low gate charge (24 nC maximum) for simpler drive requirements and improved gate, avalanche, and dynamic dV/dt ruggedness. Key characteristics include a maximum power dissipation of 110W and an operating junction temperature range of -55°C to 150°C.



The device is housed in a surface-mount DPAK (TO-252) package, suitable for automated assembly. It is intended for use in switch mode power supplies (SMPS), uninterruptible power supplies, and high-speed power switching circuits.

IRFR430ATRPBF Quick Information

Product Type: Power MOSFET
Canonical Name: IRFR430ATRPBF Power MOSFET
Subcategory: Single N-Channel

IRFR430ATRPBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

IRFR430ATRPBF Features

  • 500V drain-source voltage rating.
  • 5A continuous drain current capability.
  • 1.7 Ohm maximum on-resistance at 10V.
  • Low gate charge of 24 nC.
  • Surface-mount DPAK (TO-252) package.

IRFR430ATRPBF Applications

  • Used in switch mode power supplies.
  • Suited for uninterruptible power supplies.
  • Ideal for high-speed power switching.

IRFR430ATRPBF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the IRFR430ATRPBF?

The maximum drain-source voltage (Vdss) is 500 V.

What is the maximum continuous drain current at 25°C?

The maximum continuous drain current is 5.0 A at case temperature Tc=25°C.

What is the package type for this MOSFET?

It comes in a DPAK (TO-252) surface-mount package.

What is the operating temperature range?

The operating junction temperature range is -55°C to 150°C.

Is the IRFR430ATRPBF RoHS compliant?

RoHS status is listed as RoHS3 Compliant, but this has low confidence as it is not verified from a datasheet statement.

What is the typical gate charge of this MOSFET?

The maximum total gate charge (Qg) at Vgs=10V is 24 nC.

What are the cross-reference part numbers for the IRFR430ATRPBF?

Cross-references include SiHFR430A-GE3, SiHFR430ATR-GE3, IRFR430APbF, and others from Vishay Siliconix, as well as distributor part numbers from DigiKey.
