| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
372 pcs
|
372 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Fall Time (Typ) | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Rise Time (Typ) | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

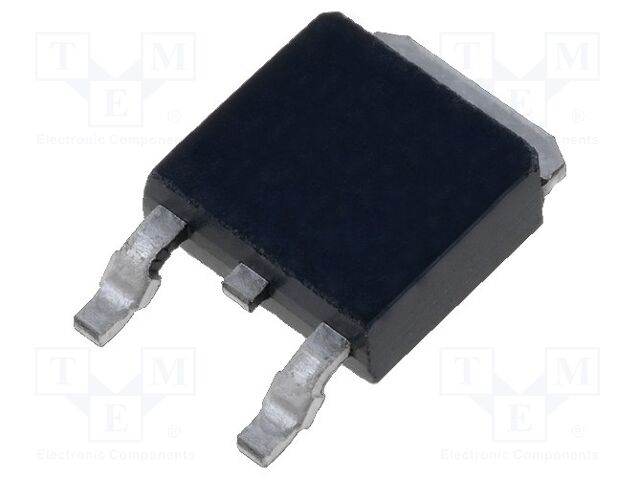

The IRFR220NPBF is an N-Channel Power MOSFET designed for high-efficiency power conversion applications. With a drain-source voltage rating of 200V and continuous drain current of 5A at 25°C, it is suitable for a variety of switching power supplies and DC-DC converters. The device features a maximum on-resistance of 600mOhm at Vgs=10V, ensuring low conduction losses. It also offers fast switching performance with typical turn-on delay of 6.4ns and rise time of 11ns. The MOSFET is housed in a D-Pak (TO-252) surface mount package, which is ideal for automated assembly. It is RoHS compliant and has an operating junction temperature range of -55°C to 175°C. Typical applications include telecom 48V input forward converters and other high-frequency DC-DC converters.
The maximum drain-source voltage is 200V.
It is available in a D-Pak (TO-252) surface mount package.
-55°C to 175°C.
It is listed as RoHS3 compliant, but this is unverified.
The maximum on-resistance is 600mOhm at Vgs=10V and Id=2.9A.
