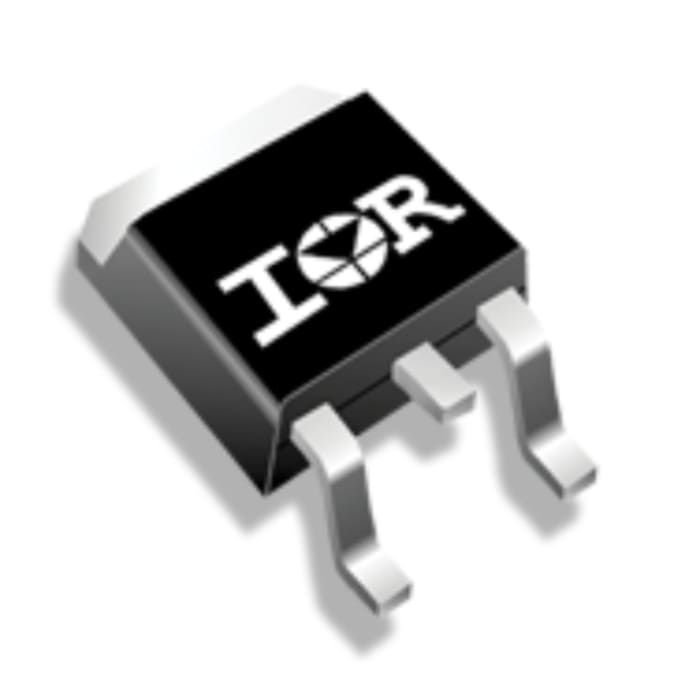

IRFR15N20DTRPBF N-Channel MOSFET rated 200V drain-to-source voltage, 17A continuous drain current, 165mOhm on-resistance in DPAK surface-mount package.
Mfr Part #:

IRFR15N20DTRPBF

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
N-Channel MOSFET rated 200V drain-to-source voltage, 17A continuous drain current, 165mOhm on-resistance in DPAK surface-mount package.
✓ Total Stock: 9,020 pcs

IRFR15N20DTRPBF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
9,020 pcs
On Request
9020 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IRFR15N20DTRPBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

IRFR15N20DTRPBF Description

Short technical summary and product information.

The IRFR15N20DTRPBF is an N-Channel power MOSFET from Infineon Technologies using HEXFET technology. It features a maximum drain-to-source voltage of 200V and continuous drain current of 17A at case temperature 25°C, with a typical on-resistance of 165mOhm at 10V gate drive. This device is designed for high-frequency DC-DC converters and switching applications requiring low gate charge (typical 41nC total) and fast switching speeds (9.7ns turn-on delay, 32ns rise time). It offers fully characterized capacitances including output capacitance over various VDS conditions (170pF typical at 25V, 1380pF at 1V, 67pF at 160V) to simplify design. The part is housed in a surface-mount D-PAK (TO-252AA) package with three leads and tab. Operating junction temperature range is -55°C to +175°C. The device is lead-free (PbF) with maximum power dissipation of 140W at case temperature 25°C. Avalanche energy is rated typically at 260mJ.

IRFR15N20DTRPBF Quick Information

Product Type: Single MOSFET
Series: IRFR15N20D
Canonical Name: IRFR15N20DTRPBF - N-Channel 200V 17A MOSFET
Subcategory: N-Channel Power MOSFET

IRFR15N20DTRPBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free (PbF)

IRFR15N20DTRPBF Features

  • 200V drain-to-source voltage rating.
  • 17A continuous drain current at 25°C.
  • 165mOhm maximum on-resistance.
  • Surface-mount D-PAK (TO-252AA) package.
  • Low gate charge for efficient switching.

IRFR15N20DTRPBF Applications

  • Used in high-frequency DC-DC converters.
  • Suitable for switching power supplies.
  • Ideal for motor drive circuits.
  • Applicable in LED lighting power stages.

IRFR15N20DTRPBF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage?

200 V.

What is the maximum continuous drain current?

17 A at Tc=25°C; 12 A at Tc=100°C.

What is the typical on-resistance?

165 mOhm maximum at VGS=10V, ID=10A.

What is the operating junction temperature range?

-55°C to +175°C.

What package is this part available in?

TO-252-3 (DPak) surface mount, also known as D-PAK (TO-252AA).

What is the typical gate charge?

41 nC maximum total gate charge at VGS=10V, ID=10A, VDS=160V.

Is this device RoHS compliant?

RoHS3 Compliant (unverified low confidence from attributes).
