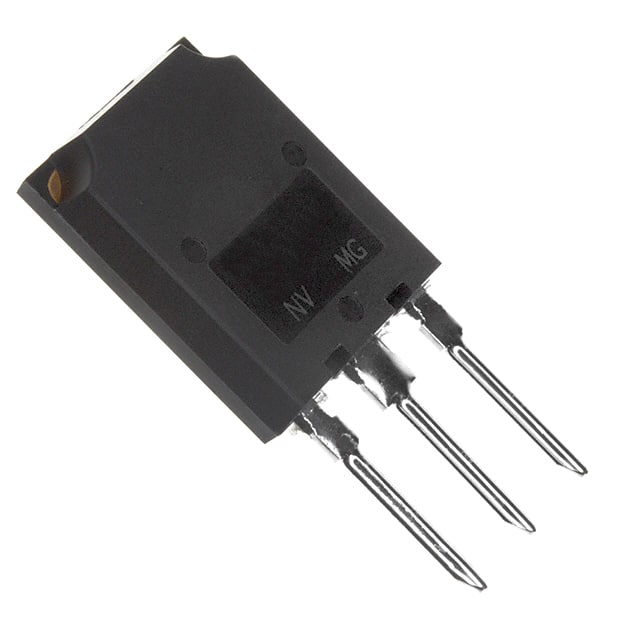

IRFPS37N50APBF N-Channel MOSFET with 500V drain-source voltage and 36A continuous drain current. Features low 130mOhm on-resistance and high power dissipation of 446W.
Mfr Part #:

IRFPS37N50APBF

Available from 2 distributors
Mfr Name: Vishay
Vishay
N-Channel MOSFET with 500V drain-source voltage and 36A continuous drain current. Features low 130mOhm on-resistance and high power dissipation of 446W.
✓ Total Stock: 5,049 pcs
$ Price Range: $3.12 - $15.48

IRFPS37N50APBF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request 2021+ On Request On Request
Fe Components ✓
Non-Authorised Inventory information
49 pcs
On Request
49 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IRFPS37N50APBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
SVHC Present
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

IRFPS37N50APBF Description

Short technical summary and product information.

This N-channel power MOSFET from Vishay Dale offers a drain-source voltage rating of 500V and continuous drain current of 36A. It utilizes advanced MOSFET technology for efficient power switching.



With a typical on-resistance of 130mOhm at 22A gate drive of 10V, this device minimizes conduction losses. The gate charge is 180nC and input capacitance is 5579pF, enabling efficient gate drive design.



Housed in a through-hole TO-274AA (SUPER-247) package, the part operates over a junction temperature range of -55°C to 150°C. Maximum power dissipation is 446W.



Applications include power supplies, motor drives, and inverters where high voltage and current handling are required.

IRFPS37N50APBF Quick Information

Product Type: MOSFET
Canonical Name: Vishay Dale IRFPS37N50APBF N-Channel MOSFET
Subcategory: N-Channel MOSFET

IRFPS37N50APBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IRFPS37N50APBF Estimated Pricing

Qty Low High
1+ $15.48 $15.48
10+ $3.76 $3.76
100+ $3.40 $3.40
250+ $3.12 $3.12

Estimated market price range - modelled values for guidance only, not live distributor offers.

IRFPS37N50APBF Features

  • N-Channel MOSFET with 500V drain-source voltage.
  • Continuous drain current rating of 36A.
  • Low on-resistance of 130mOhm at 10V gate drive.
  • Through-hole TO-274AA SUPER-247 package.
  • Wide operating temperature range -55°C to 150°C.

IRFPS37N50APBF Applications

  • Suitable for high-voltage power supply circuits.
  • Ideal for motor control and inverter applications.
  • Used in switching power converters and UPS systems.

IRFPS37N50APBF FAQs

6 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating of the IRFPS37N50APBF?

500V.

What package is this MOSFET available in?

Through-hole TO-274AA (SUPER-247).

What is the operating temperature range?

-55°C to 150°C (junction).

Is the IRFPS37N50APBF RoHS compliant?

RoHS3 Compliant (unverified from database).

What is the continuous drain current rating?

36A (Tc).

What is the gate charge of this MOSFET?

180 nC at Vgs=10V.
