| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
158 pcs
|
158 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The IRFPG50 is a 1000V N-Channel Power MOSFET designed for efficient high-voltage switching. It delivers a continuous drain current of 6.1A at 25°C and a pulsed current of 24A. The maximum drain-source on-resistance is 2 Ohm at 10V gate drive.
This device is rated for repetitive avalanche energy up to 19 mJ and a single pulse avalanche energy of 800 mJ, ensuring robust performance in demanding applications. The gate charge is 190 nC, enabling fast switching and simple drive requirements.

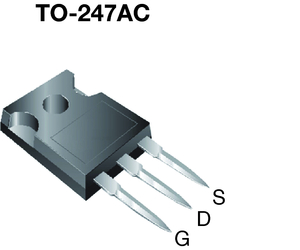

Packaged in a through-hole TO-247-3 (TO-247AC) case, the IRFPG50 is suitable for industrial and commercial applications requiring high reliability and thermal performance. Maximum power dissipation is 190W at case temperature 25°C, with an operating junction temperature range of -55°C to 150°C.
The drain-source voltage rating is 1000 V.
The maximum continuous drain current at case temperature 25°C is 6.1 A.
The drain-source on-resistance is a maximum of 2 Ohm at a gate-source voltage of 10 V and drain current of 3.6 A.
It comes in a through-hole TO-247-3 package, also referred to as TO-247AC.
The operating junction temperature range is -55°C to 150°C.
The maximum power dissipation at case temperature 25°C is 190 W.
