| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The IRFPG40 is a 1000V N-Channel power MOSFET from Vishay Dale, designed for high-voltage switching applications. It offers a continuous drain current of 4.3A at 25°C case temperature and a maximum on-resistance of 3.5 Ohm at 10V gate drive.
This MOSFET features a gate threshold voltage of 4V at 250µA and a total gate charge of 120 nC, enabling efficient drive requirements. It is avalanche rated with single pulse avalanche energy of 490 mJ and repetitive avalanche current of 4.3A.

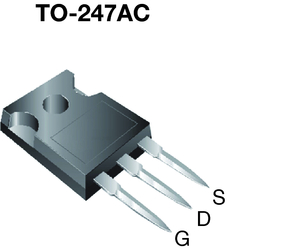

The device is housed in a TO-247-3 package (TO-247AC) with through-hole mounting, suitable for high-power applications. It has an operating junction temperature range of -55°C to 150°C and a maximum power dissipation of 150W at 25°C case temperature.
1000V maximum.
4.3A at Tc=25°C, 2.7A at Tc=100°C.
3.5 Ohm maximum at Id=2.6A, Vgs=10V.
-55°C to 150°C junction temperature.
TO-247-3 (TO-247AC) through-hole.
RoHS3 compliant (unverified).
4V maximum at Id=250µA.
