| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,250 pcs
|
2250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The IRFPF50PBF is an N-Channel power MOSFET from Vishay, designed for high-voltage switching applications. It features a maximum drain-source voltage of 900V and a continuous drain current of 6.7A at 25°C. The device has a low on-resistance of 1.6 Ohms at 10V gate drive, contributing to efficient power conversion.
The MOSFET is avalanche rated for ruggedness in inductive switching environments, with a single pulse avalanche energy rating of 880 mJ. It is housed in a through-hole TO-247-3 package (TO-247AC), which offers creepage distances suitable for industrial safety specifications. The device is suitable for applications such as switched-mode power supplies, motor drives, and inverters.
900 V.
6.7 A at Tc=25°C; 4.2 A at Tc=100°C.
1.6 Ohm maximum at Id=4A, Vgs=10V.

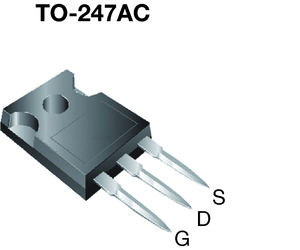

TO-247-3 (TO-247AC) through-hole package.
-55°C to 150°C (junction).
RoHS3 compliant according to database (unverified).
200 nC maximum at Vgs=10V.
