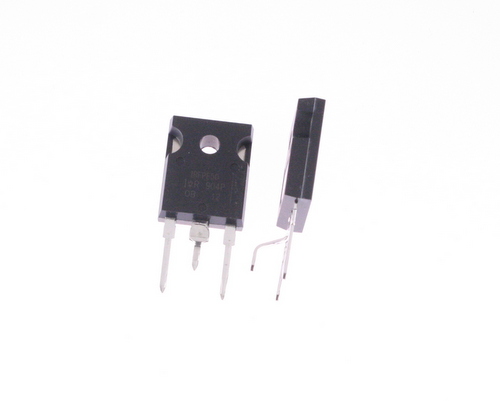

IRFPE50PBF IRFPE50PBF is an 800V, 7.8A N-Channel Power MOSFET from Vishay Dale in a TO-247-3 through-hole package.
Mfr Part #:

IRFPE50PBF

Available from 3 distributors
Mfr Name: Vishay
Vishay
IRFPE50PBF is an 800V, 7.8A N-Channel Power MOSFET from Vishay Dale in a TO-247-3 through-hole package.
✓ Total Stock: 3,096 pcs

IRFPE50PBF Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,646 pcs
On Request
1646 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
450 pcs
On Request
450 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IRFPE50PBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

IRFPE50PBF Description

Short technical summary and product information.

The IRFPE50PBF is an N-Channel Power MOSFET from Vishay Dale, designed for high-voltage switching applications. It features a drain-to-source voltage (Vdss) of 800V and a continuous drain current of 7.8A at 25°C case temperature. The device offers a maximum on-resistance of 1.2Ω at 10V gate drive, ensuring efficient power handling.



This MOSFET is rated for repetitive avalanche operation with a single pulse avalanche energy of 770mJ, making it suitable for rugged industrial environments. The total gate charge is 200nC, enabling fast switching performance. The device is housed in a TO-247-3 (TO-247AC) through-hole package, which provides excellent thermal dissipation with a maximum power dissipation of 190W.



The IRFPE50PBF is lead (Pb)-free and RoHS compliant per the datasheet. It operates over a junction temperature range of -55°C to 150°C, making it suitable for demanding thermal conditions. Typical applications include switch-mode power supplies, motor drives, and high-voltage inverters.

IRFPE50PBF Quick Information

Product Type: Power MOSFET
Canonical Name: IRFPE50PBF
Subcategory: Single MOSFET

IRFPE50PBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead (Pb)-free

IRFPE50PBF Features

  • 800V drain-to-source voltage rating.
  • 7.8A continuous drain current at 25°C.
  • 1.2Ω maximum on-resistance at 10V gate drive.
  • Avalanche rated with 770mJ single pulse energy.
  • TO-247-3 through-hole package for easy mounting.

IRFPE50PBF Applications

  • Used in high-voltage switch-mode power supplies.
  • Ideal for motor drive and inverter circuits.
  • Suitable for industrial power conversion systems.
  • Employed in uninterruptible power supplies (UPS).

IRFPE50PBF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage of the IRFPE50PBF?

The maximum drain-to-source voltage (Vdss) is 800V.

What is the continuous drain current rating?

The continuous drain current is 7.8A at Tc=25°C and 4.9A at Tc=100°C.

What is the on-resistance of this MOSFET?

The maximum on-resistance (Rds on) is 1.2Ω at Id=4.7A and Vgs=10V.

What package does the IRFPE50PBF come in?

It comes in a TO-247-3 (TO-247AC) through-hole package.

What is the operating temperature range?

The operating junction temperature range is -55°C to 150°C.

Is the IRFPE50PBF RoHS compliant?

The datasheet indicates the part is lead (Pb)-free and RoHS compliant for the PbF suffix version.

What is the maximum power dissipation?

The maximum power dissipation is 190W at Tc=25°C.
