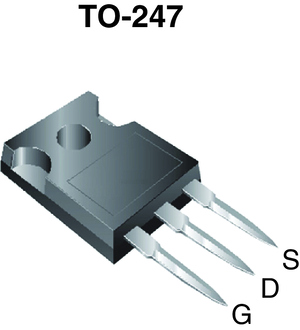

The IRFPC40 is an N-Channel MOSFET manufactured by Vishay Dale. It features a drain-source voltage rating of 600V and a continuous drain current of 6.8A at case temperature. The device is built using MOSFET (Metal Oxide) technology.
Key electrical characteristics include a maximum on-resistance of 1.2 Ohm at 4.1A drain current and 10V gate drive, a maximum gate charge of 60 nC at 10V, and an input capacitance of 1300 pF at 25V drain-source voltage. The maximum gate threshold voltage is 4V at 250 microamps drain current, and the maximum gate-source voltage is ±20V with a recommended drive voltage of 10V.
Thermally, the part can dissipate up to 150W at case temperature and operates over a junction temperature range of -55°C to 150°C. It is supplied in a through-hole TO-247-3 package with a supplier device package of TO-247AC, suitable for high-voltage switching applications requiring robust power handling.
600V maximum.
TO-247-3 (through-hole, supplier package TO-247AC).
-55°C to 150°C (junction temperature).
RoHS3 Compliant (unverified data).
6.8A at case temperature.
1.2 ohm maximum at 4.1A drain current and 10V gate drive.
60 nC maximum at 10V gate-source voltage.
