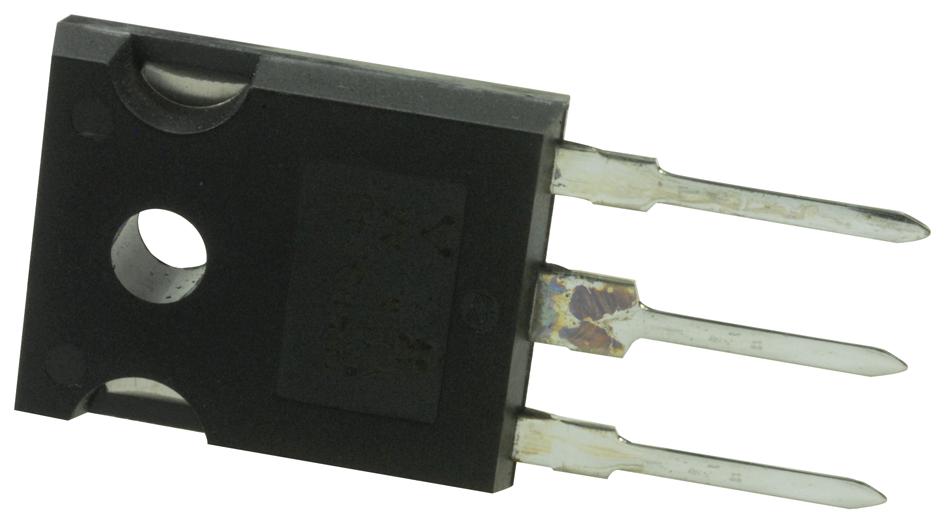

IRFP9240PBF IRFP9240PBF is a P-Channel MOSFET from Vishay Dale with 200V drain-source voltage and 12A drain current. It comes in a TO-247-3 through-hole package.
Mfr Part #:

IRFP9240PBF

Available from 3 distributors
Mfr Name: Vishay
Vishay
IRFP9240PBF is a P-Channel MOSFET from Vishay Dale with 200V drain-source voltage and 12A drain current. It comes in a TO-247-3 through-hole package.
✓ Total Stock: 18,770 pcs

IRFP9240PBF Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request 2021+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,770 pcs
On Request
7770 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IRFP9240PBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

IRFP9240PBF Description

Short technical summary and product information.

The IRFP9240PBF is a P-Channel enhancement-mode MOSFET manufactured by Vishay Dale. It features a drain-to-source voltage rating of 200V and a continuous drain current of 12A at case temperature. The device has a maximum on-resistance of 500mOhm at a gate drive of 10V and a drain current of 7.2A.



This MOSFET uses Metal Oxide semiconductor technology and is designed for through-hole mounting in a TO-247-3 package, with the supplier device package designated as TO-247AC. It can dissipate up to 150W of power at the case and operates over a junction temperature range of -55°C to 150°C.



The device has a maximum gate threshold voltage of 4V at 250µA drain current and can accept a gate-to-source voltage of up to ±20V. Input capacitance is rated at 1200pF at 25V drain-source voltage, and maximum gate charge is 44nC at 10V gate voltage.

IRFP9240PBF Quick Information

Product Type: MOSFET
Canonical Name: IRFP9240PBF P-Channel MOSFET
Subcategory: Single MOSFET

IRFP9240PBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IRFP9240PBF Features

  • P-Channel enhancement-mode MOSFET design.
  • 200V drain-to-source voltage rating.
  • 12A continuous drain current capability.
  • 500mOhm maximum on-resistance at 10V gate drive.
  • TO-247-3 through-hole package for easy mounting.

IRFP9240PBF Applications

  • Suitable for high-voltage power switching circuits.
  • Used in DC-DC converters and power supplies.
  • Ideal for motor control and load switching applications.
  • Applicable in battery protection and management systems.

IRFP9240PBF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-to-source voltage rating of the IRFP9240PBF?

The drain-to-source voltage (Vdss) is 200V.

What is the maximum drain current of the IRFP9240PBF?

The maximum drain current is 12A at case temperature (Tc).

What is the on-resistance of the IRFP9240PBF?

The maximum drain-to-source on-resistance (Rds(on)) is 500mOhm at Id=7.2A and Vgs=10V.

What package does the IRFP9240PBF come in?

It comes in a TO-247-3 through-hole package, with the supplier device package designated as TO-247AC.

What is the operating temperature range of the IRFP9240PBF?

The operating junction temperature range is -55°C to 150°C.

What is the gate threshold voltage of the IRFP9240PBF?

The maximum gate threshold voltage (Vgs(th)) is 4V at Id=250µA.

What is the maximum power dissipation of the IRFP9240PBF?

The maximum power dissipation is 150W at case temperature (Tc).
