The IRFP9140 is a P-Channel enhancement-mode Power MOSFET designed for high-power switching applications. It delivers a drain-source voltage (Vds) of 100V and a continuous drain current of 21A at 25°C case temperature. The device features a low maximum on-resistance of 200mΩ measured at Vgs = -10V and Id = 13A, enabling efficient power conversion.
The MOSFET offers a total gate charge of 61nC at 10V gate drive, with typical gate-source charge of 14nC and gate-drain charge of 29nC. Input capacitance is 1400pF at 25V drain-source bias. The device is avalanche-rated with a single-pulse avalanche energy of 960mJ and repetitive avalanche current capability of 21A.

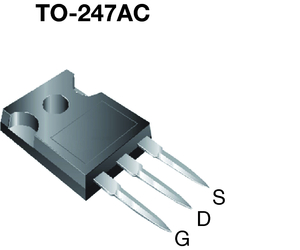

Packaged in the industry-standard TO-247-3 (TO-247AC) through-hole package, the IRFP9140 provides excellent thermal performance with a maximum power dissipation of 180W at 25°C case temperature. It operates over a junction temperature range of -55°C to 175°C, making it suitable for demanding environments. The part is RoHS3 compliant and MSL Level 1 (unlimited).
The maximum drain-source voltage (Vdss) is 100V.
It comes in a TO-247-3 (TO-247AC) through-hole package.
The operating junction temperature range is -55°C to 175°C.
The datasheet indicates RoHS3 compliant, but this is unverified and low confidence.
The maximum on-resistance is 200mΩ at Id = 13A and Vgs = -10V.
The maximum gate threshold voltage is 4V at Id = 250µA.
The continuous drain current is 21A at Tc = 25°C.
