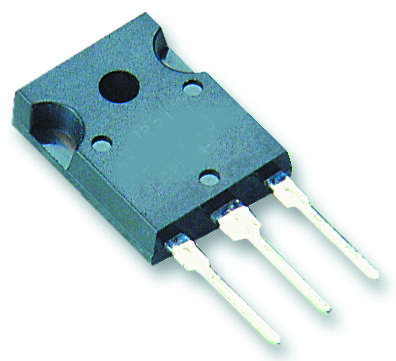

IRFP460PBF N-Channel Power MOSFET, 500V drain-source voltage, 20A continuous drain current, 270mΩ on-resistance, TO-247-3 package.
Mfr Part #:

IRFP460PBF

Available from 5 distributors
Mfr Name: Vishay
Vishay
N-Channel Power MOSFET, 500V drain-source voltage, 20A continuous drain current, 270mΩ on-resistance, TO-247-3 package.
✓ Total Stock: 30,476 pcs

IRFP460PBF Available from 5 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
21,445 pcs
On Request
21445 pcs On Request 1 On Request On Request On Request On Request On Request
Risen Electronics ✓
Non-Authorised Inventory information
4,500 pcs
On Request
4500 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
Smaxon Electronics ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request 1719+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,531 pcs
On Request
1531 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IRFP460PBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
SVHC Present
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

IRFP460PBF Description

Short technical summary and product information.

The IRFP460PBF is a third-generation N-Channel Power MOSFET from Vishay, designed for high-voltage switching applications. It features a maximum drain-source voltage of 500V and continuous drain current of 20A at 25°C (13A at 100°C). The on-resistance is typically 270mΩ at Vgs=10V, enabling efficient power conversion.



This MOSFET offers fast switching with a total gate charge of 210nC and input capacitance of 4200pF. It is rated for repetitive avalanche energy (EAS 960mJ) and has a peak diode recovery dV/dt of 3.5V/ns, ensuring ruggedness in demanding environments. The device is suitable for applications such as switching power supplies, motor drives, and inverters.



The IRFP460PBF is housed in a TO-247-3 through-hole package, which provides excellent thermal performance and easy mounting. The isolated mounting hole and increased creepage distances meet safety requirements. The part is lead-free (PbF) and RoHS-compliant per the datasheet material categorization.

IRFP460PBF Quick Information

Product Type: Power MOSFET
Canonical Name: IRFP460PBF Power MOSFET
Subcategory: N-Channel Power MOSFET

IRFP460PBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

IRFP460PBF Features

  • 500V drain-source voltage rating.
  • 20A continuous drain current capability.
  • Low 270mΩ on-resistance at 10V gate drive.
  • Fast switching with 210nC total gate charge.
  • Repetitive avalanche rated for ruggedness.

IRFP460PBF Applications

  • Used in high-voltage switching power supplies.
  • Ideal for motor control and inverters.
  • Suitable for UPS and industrial applications.
  • Applicable in lighting ballasts and converters.

IRFP460PBF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating?

500V maximum.

What is the continuous drain current?

20A at TC=25°C, 13A at TC=100°C.

What is the on-resistance?

270mΩ maximum at Vgs=10V, Id=12A.

What is the operating temperature range?

-55°C to 150°C junction temperature.

What package is it available in?

TO-247-3 (through-hole).

Is it RoHS compliant?

The datasheet indicates lead-free (PbF) suffix and material categorization for RoHS compliance, but the status is unverified.

What is the total gate charge?

210nC maximum at Vgs=10V.
