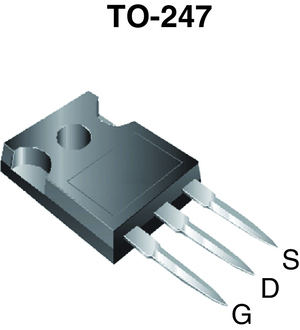

The IRFP460LC is a 500V N-Channel Power MOSFET designed for high-voltage switching applications. It features a continuous drain current of 20A at Tc=25°C and 12A at Tc=100°C, with a maximum on-resistance of 270mOhm at Vgs=10V and Id=12A. The device offers a total gate charge of 120nC and input capacitance of 3600pF, enabling efficient switching performance.
Avalanche energy is rated at 960mJ single pulse, and the device supports repetitive avalanche currents up to 20A. The maximum gate-source voltage rating is ±30V, and power dissipation is 280W at Tc=25°C. Operating junction temperature range is -55°C to 150°C.
The MOSFET is housed in a TO-247-3 package (supplier device package TO-247AC) with through-hole mounting, suitable for high-power applications requiring efficient thermal management. The low gate charge design reduces drive requirements and improves system efficiency in power conversion circuits.
The maximum drain-source voltage (Vdss) is 500 V.
The package is TO-247-3, with supplier device package TO-247AC.
The operating junction temperature range is -55°C to 150°C.
The product is listed as RoHS3 compliant, but this is unverified and the datasheet notes that some parts may not be RoHS compliant. Verification is recommended.
The maximum continuous drain current is 20 A at Tc=25°C and 12 A at Tc=100°C.
The maximum on-resistance is 270 mOhm at Vgs=10V and Id=12A.
The total gate charge (Qg) at Vgs=10V is 120 nC.
