| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,000 pcs
|
30000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The IRFP460HPBF is a 500V, 20A N-Channel Power MOSFET manufactured by Vishay Siliconix. It utilizes MOSFET (Metal Oxide) technology and is designed for high-efficiency power conversion applications. Key electrical specifications include a maximum drain-source voltage of 500V, continuous drain current of 20A at 25°C (13A at 100°C), and a typical on-resistance of 0.234Ω at VGS=10V. The device features a low figure-of-merit (Ron x Qg), low effective capacitance, and reduced switching and conduction losses, making it suitable for high-frequency operation. The total gate charge is 116nC maximum, with gate-source charge of 22nC and gate-drain charge of 35nC typical. The MOSFET is avalanche energy rated (UIS) with a single pulse energy capability of 621mJ. It can dissipate up to 329W at case temperature 25°C. The operating junction temperature range is -55°C to 150°C. The device is packaged in a through-hole TO-247-3 (TO-247AC) package, suitable for PCB mounting. Typical applications include server and telecom power supplies, switch mode power supplies (SMPS), power factor correction (PFC) circuits, lighting (HID and fluorescent ballast), and industrial equipment such as welding, induction heating, motor drives, battery chargers, and solar inverters.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.98 | $2.98 |
| 10+ | $2.95 | $2.95 |
| 100+ | $2.92 | $2.92 |
| 1,000+ | $2.83 | $2.83 |
| 10,000+ | $2.77 | $2.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 500V.

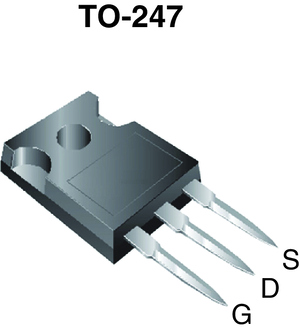

It is available in a TO-247-3 (TO-247AC) through-hole package.
The operating junction temperature range is -55°C to 150°C.
It is marked as RoHS3 compliant but unverified. The part number suffix PBF indicates lead-free.
Typical on-resistance is 0.234Ω at VGS=10V, TJ=25°C; maximum is 0.27Ω at ID=12A, VGS=10V.
Total gate charge (Qg) is 116nC maximum at VGS=10V.
Single pulse avalanche energy (EAS) is 621mJ maximum under specified conditions (VDD=120V, L=4.3mH, Rg=25Ω, IAS=17A, starting TJ=25°C).
