| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The IRFP460BPBF is an N-Channel power MOSFET from Vishay Siliconix, part of the D Series optimized for high-efficiency switching. It is rated for a maximum drain-source voltage of 500V and a continuous drain current of 20A at a 10V gate drive.
Key electrical characteristics include a maximum on-resistance of 250 mOhm at Vgs=10V and Id=10A, a maximum gate charge of 170 nC, and a maximum input capacitance of 3094 pF at Vds=100V. The device is capable of dissipating up to 278W at case temperature and operates over a junction temperature range of -55°C to 150°C.

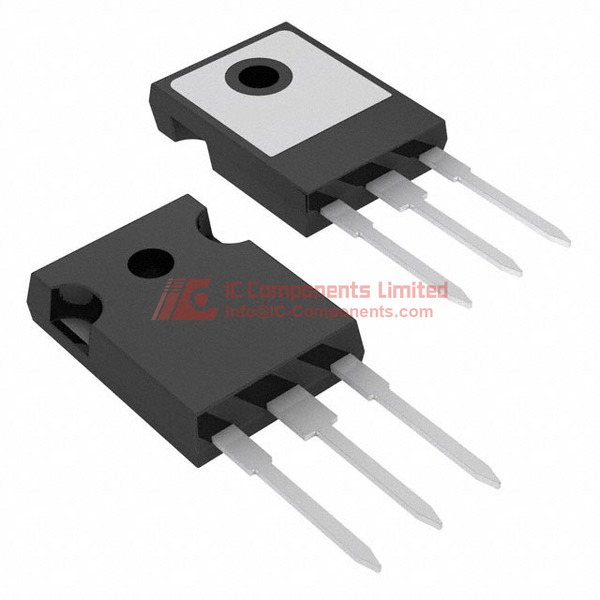

The MOSFET is housed in a TO-247-3 (TO-247AC) through-hole package, suitable for low-cost assembly and good thermal management. Typical applications include switch-mode power supplies, power factor correction circuits, motor drives, and battery chargers.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.60 | $2.60 |
| 10+ | $2.33 | $2.33 |
| 100+ | $1.91 | $1.91 |
| 500+ | $1.63 | $1.63 |
| 1,000+ | $1.37 | $1.37 |
| 2,000+ | $1.30 | $1.30 |
| 5,000+ | $1.26 | $1.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 500V.
The maximum continuous drain current is 20A at case temperature 25°C.
The device is supplied in a TO-247-3 (TO-247AC) through-hole package.
The junction temperature range is -55°C to 150°C.
The part is listed as RoHS3 compliant, though this information is unverified.
The maximum gate-source voltage is ±20V.
The maximum power dissipation is 278W at case temperature.
