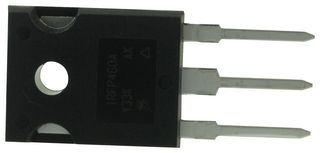

IRFP460APBF The IRFP460APBF is an N-Channel Power MOSFET by Vishay Dale. It features 500V drain-source voltage and 20A continuous drain current in a TO-247-3 package.
Mfr Part #:

IRFP460APBF

Available from 3 distributors
Mfr Name: Vishay
Vishay
The IRFP460APBF is an N-Channel Power MOSFET by Vishay Dale. It features 500V drain-source voltage and 20A continuous drain current in a TO-247-3 package.
✓ Total Stock: 2,677 pcs
$ Price Range: $1.93 - $3.84

IRFP460APBF Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,077 pcs
On Request
1077 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
600 pcs
On Request
600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IRFP460APBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

IRFP460APBF Description

Short technical summary and product information.

The IRFP460APBF is an N-Channel Power MOSFET from Vishay Dale, designed for high voltage power switching applications. It features a maximum drain-source voltage of 500V and a continuous drain current of 20A at 25°C (13A at 100°C). The device has a low on-resistance of 270 mOhm typical at 10V gate drive, and a gate charge of 105 nC for efficient switching. Input capacitance is 3100 pF at 25V Vds. The MOSFET can handle pulsed drain current up to 80A and single pulse avalanche energy of 960 mJ. It is housed in a through-hole TO-247-3 package with a operating temperature range of -55°C to 150°C. Typical applications include switch mode power supplies (SMPS), uninterruptible power supplies (UPS), and high speed power switching circuits.

IRFP460APBF Quick Information

Product Type: Power MOSFET
Canonical Name: IRFP460APBF N-Channel Power MOSFET
Subcategory: Single N-Channel MOSFET

IRFP460APBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IRFP460APBF Estimated Pricing

Qty Low High
1+ $3.84 $3.84
10+ $3.46 $3.46
100+ $2.83 $2.83
500+ $2.41 $2.41
1,000+ $2.03 $2.03
2,000+ $1.93 $1.93

Estimated market price range - modelled values for guidance only, not live distributor offers.

IRFP460APBF Features

  • 500V drain-source voltage rating.
  • 20A continuous drain current at 25°C.
  • Low on-resistance of 270 mOhm.
  • High avalanche energy rating of 960 mJ.
  • Through-hole TO-247-3 package.

IRFP460APBF Applications

  • Used in switch mode power supplies (SMPS).
  • Ideal for uninterruptible power supplies (UPS).
  • Suitable for high speed power switching.
  • Applied in full bridge and PFC boost topologies.

IRFP460APBF FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the IRFP460APBF?

500 V.

What package is the IRFP460APBF available in?

TO-247-3 (through-hole).

What is the operating temperature range?

-55°C to 150°C (junction).

Is the IRFP460APBF RoHS compliant?

Yes, it is listed as RoHS3 compliant (unverified).

What is the continuous drain current rating at 25°C?

20 A (maximum).
