The IRFP4568PBF is an N-Channel enhancement mode power MOSFET manufactured by Infineon Technologies. It is designed for high efficiency power conversion applications including synchronous rectification in switched-mode power supplies (SMPS) and uninterruptible power supplies (UPS).
This MOSFET offers a drain-to-source voltage (Vdss) of 150V and a continuous drain current (ID) of 171A at 25°C case temperature, with a maximum pulsed drain current of 684A. The static drain-to-source on-resistance (Rds(on)) is typically 4.8 mOhm and a maximum of 5.9 mOhm at VGS = 10V and ID = 103A. The device features a gate threshold voltage range of 3.0V to 5.0V and a maximum gate-to-source voltage of ±30V.
The IRFP4568PBF is housed in a TO-247AC (TO-247-3) through-hole package. It has a maximum power dissipation of 517W at 25°C case temperature and an operating junction temperature range of -55°C to 175°C. The device is characterized for avalanche energy with a single pulse avalanche energy rating of 763 mJ and features enhanced gate, avalanche, and dynamic dV/dt ruggedness.
The drain-to-source breakdown voltage (Vdss) is 150V.
The continuous drain current (ID) is 171A at TC = 25°C and 121A at TC = 100°C.
The static drain-to-source on-resistance (Rds(on)) is typically 4.8 mOhm and a maximum of 5.9 mOhm at VGS = 10V and ID = 103A.
The operating junction temperature range is -55°C to 175°C.

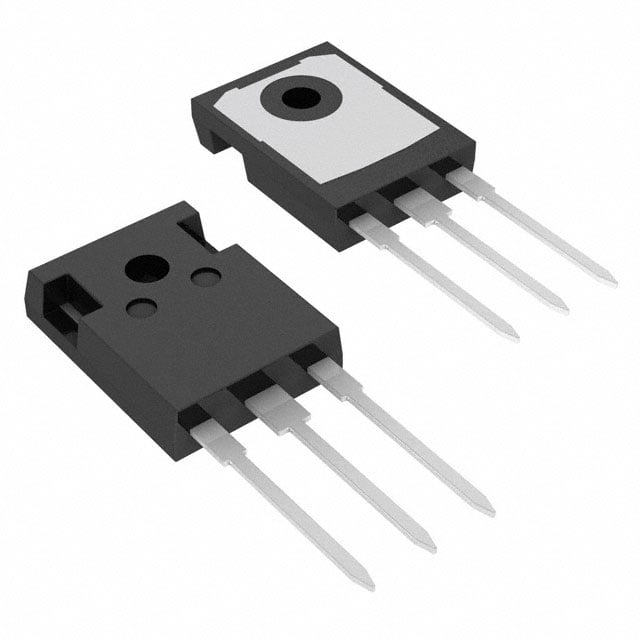

The IRFP4568PBF is supplied in a TO-247AC (TO-247-3) through-hole package.
The gate threshold voltage (Vgs(th)) is 3.0V minimum and 5.0V maximum at ID = 250 µA.
The maximum power dissipation is 517W at TC = 25°C.
