| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
960 pcs
|
960 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The IRFML8244TRPBF is a HEXFET power MOSFET from Infineon Technologies, designed as an N-channel enhancement-mode device. It is rated for a drain-source voltage of 25V and a continuous drain current of 5.8A at 25°C ambient temperature. The device features a low typical drain-source on-resistance of 20mΩ at Vgs=10V, with a maximum of 24mΩ, enabling efficient power switching.
The MOSFET is capable of handling pulsed drain currents up to 24A and has a maximum power dissipation of 1.25W at 25°C. It operates over a junction temperature range of -55°C to 150°C. The gate threshold voltage is between 1.35V and 2.35V, with typical values around 1.7V, making it suitable for logic-level gate drives. The total gate charge is typically 5.4nC, contributing to reduced switching losses.

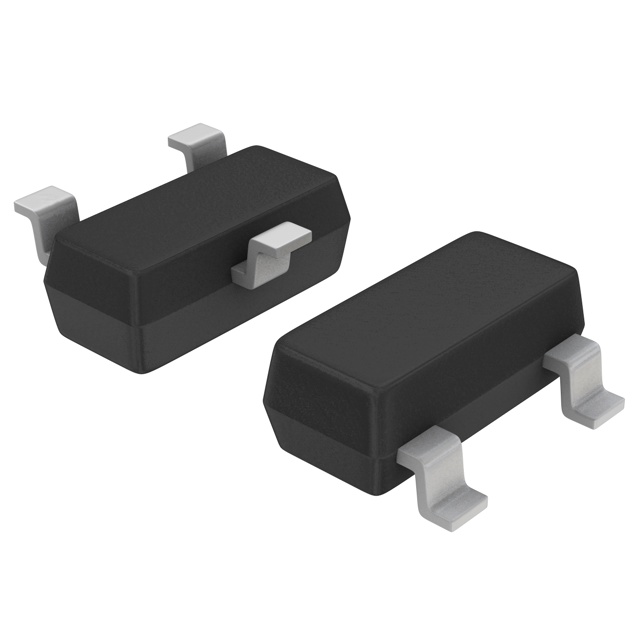

The device is housed in a compact SOT-23 (Micro3) surface-mount package, which is RoHS compliant, halogen-free, and lead-free. It is also MSL level 1 (unlimited) and REACH unaffected. This MOSFET is suitable for load/switch applications, such as power management in portable electronics, DC-DC converters, and general-purpose switching.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
| 10+ | $0.32 | $0.32 |
| 50+ | $0.23 | $0.23 |
| 100+ | $0.20 | $0.20 |
| 500+ | $0.15 | $0.15 |
| 3,000+ | $0.11 | $0.11 |
| 9,000+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IRFML8244TRPBF has a maximum drain-source voltage of 25V.
It is available in a surface-mount SOT-23 (Micro3) package.
The junction temperature range is -55°C to 150°C.
Yes, it is RoHS3 compliant, lead-free, and halogen-free.
The typical drain-source on-resistance is 20mΩ at Vgs=10V, with a maximum of 24mΩ. At Vgs=4.5V, typical is 32mΩ, maximum 41mΩ.
The continuous drain current is 5.8A at 25°C ambient and 4.6A at 70°C.
The gate threshold voltage is typically 1.7V, with a range of 1.35V to 2.35V at 10μA drain current.
