| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23,197 pcs
|
23197 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The IRFH7545TRPBF is an N-Channel power MOSFET from Infineon Technologies, part of the StrongIRFET family. It is designed for high-efficiency power conversion and motor drive applications.
Key electrical specifications include a drain-to-source voltage of 60V, continuous drain current of 85A at 25°C case temperature, and a maximum on-resistance of 5.2mΩ at VGS=10V. The device offers a typical gate charge of 110nC and input capacitance of 3890pF, enabling fast switching.

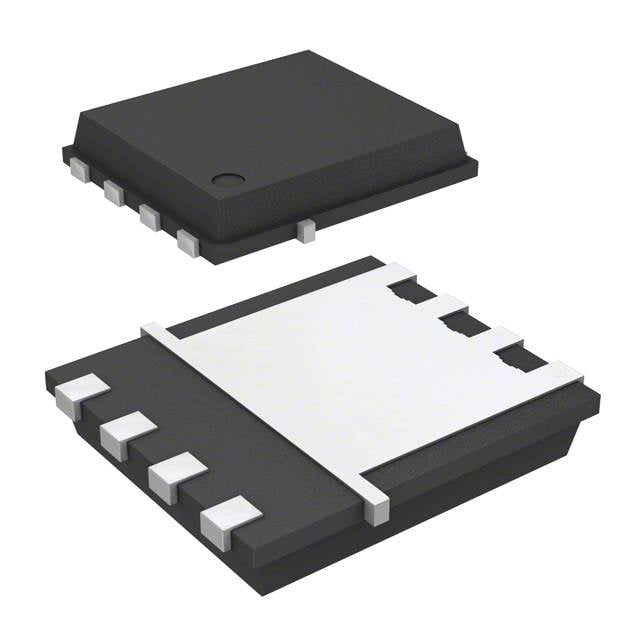

The MOSFET is housed in a surface-mount 8-PowerTDFN package (PQFN 5x6mm) and is supplied on tape and reel with a standard quantity of 4000 units. It is RoHS compliant and lead-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.90 | $1.90 |
| 10+ | $1.19 | $1.19 |
| 100+ | $0.78 | $0.78 |
| 500+ | $0.61 | $0.61 |
| 1,000+ | $0.54 | $0.54 |
| 2,000+ | $0.51 | $0.51 |
| 4,000+ | $0.43 | $0.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 V.
85 A at VGS = 10V and TC = 25°C.
5.2 mΩ at VGS = 10V and ID = 51A.
8-PowerTDFN surface-mount package (PQFN 5x6mm).
-55°C to 150°C (junction temperature).
Yes, it is RoHS3 compliant and lead-free.
