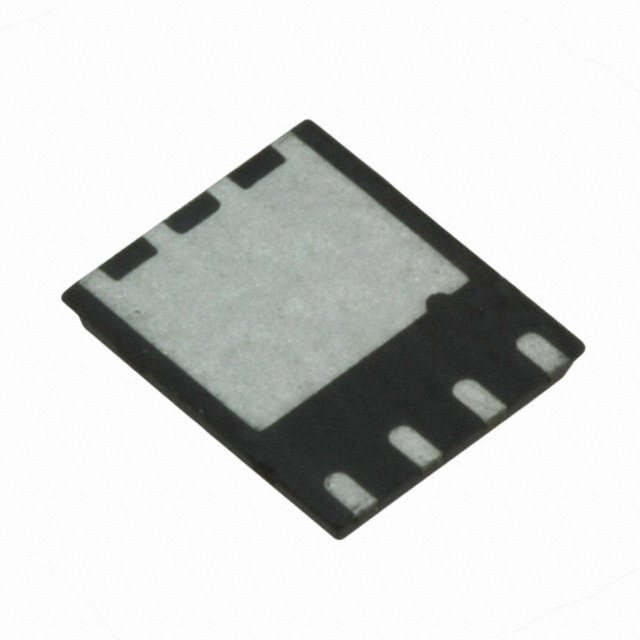

The IRFH5300TRPBF is an N-Channel power MOSFET from Infineon Technologies designed for high-efficiency switching applications. It features a drain-to-source voltage (Vdss) of 30V and can handle continuous drain currents of 40A at ambient temperature (Ta=25°C) and up to 336A at case temperature (Tc=25°C). The device offers ultra-low on-resistance, with a maximum Rds(on) of 1.4mΩ at VGS=10V and 2.1mΩ at VGS=4.5V, reducing conduction losses. Gate charge is 120nC typical at 10V, and input capacitance is 7200pF. The MOSFET is capable of handling pulsed drain currents up to 1344A and has an avalanche energy rating of 420mJ. Power dissipation is 3.6W at ambient and 250W at case temperature, with a low junction-to-case thermal resistance of 0.5°C/W. The device operates over a junction temperature range of -55°C to +150°C. Packaged in an 8-PowerVDFN (8-PQFN 5x6mm) surface mount package, it is RoHS3 compliant, lead-free, and halogen-free. Typical applications include OR-ing for 12V bus systems, in-rush current limiting, and battery-operated DC motor inverters.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.89 | $1.89 |
| 10+ | $1.21 | $1.21 |
| 100+ | $0.81 | $0.81 |
| 500+ | $0.64 | $0.64 |
| 1,000+ | $0.58 | $0.58 |
| 2,000+ | $0.54 | $0.54 |
| 4,000+ | $0.53 | $0.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-to-source voltage (Vdss) is 30 V minimum.
It comes in an 8-PowerVDFN package, also known as 8-PQFN (5x6mm).
The operating junction temperature range is -55°C to +150°C.
Yes, it is RoHS3 compliant, containing no lead, no bromide, and no halogen.
336 A at TC(Bottom)=25°C.
120 nC typical at VGS=10V, VDS=15V, ID=50A.
2.1 mΩ at VGS=4.5V, ID=50A.
