| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,020 pcs
|
5020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

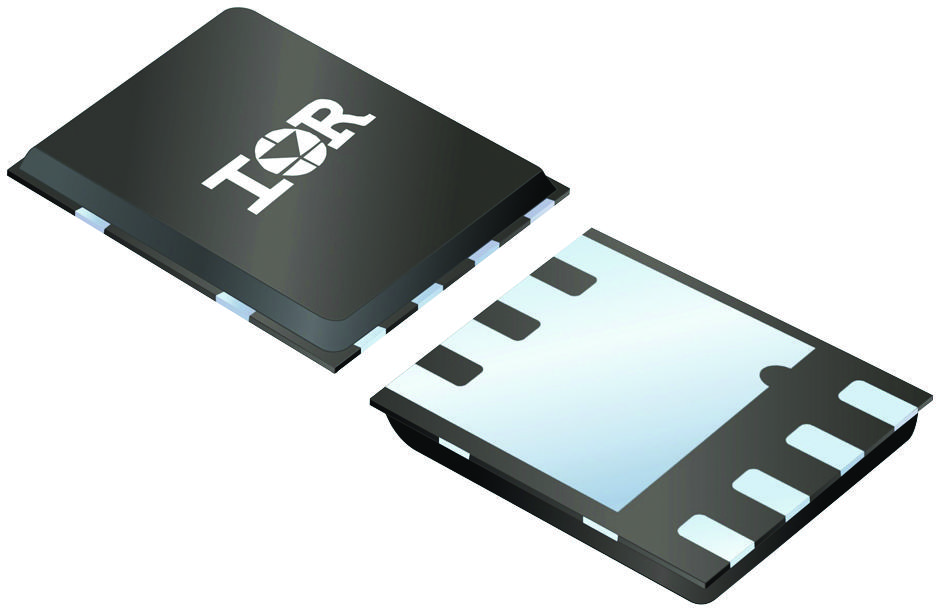

The IRFH5015TRPBF is an N-Channel Power MOSFET from Infineon Technologies, part of the HEXFET family. It features a maximum drain-to-source voltage of 150V and a continuous drain current of 56A at Tc=25°C (10A at Ta=25°C). The on-resistance is typically 31 milliohms at Vgs=10V, enabling low conduction losses. The device offers a gate charge of 50 nC maximum and input capacitance of 2300 pF at Vds=50V.
Designed for high-efficiency power conversion, this MOSFET is suitable for primary side synchronous rectification, DC-DC brick converters, boost converters, and DC motor inverters. It provides low thermal resistance to the PCB (<0.8°C/W) for improved heat dissipation and power density. The operating junction temperature range is -55°C to 150°C.
The MOSFET is housed in an 8-PowerTDFN (8-PQFN 5x6mm) surface mount package, compatible with standard surface mount assembly processes. It is RoHS3 compliant (no lead, bromide, or halogen) and rated MSL 1 for unlimited moisture sensitivity. Tape and reel packaging with 4000 units per reel facilitates automated manufacturing.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.44 | $2.44 |
| 10+ | $1.57 | $1.57 |
| 100+ | $1.07 | $1.07 |
| 500+ | $0.88 | $0.88 |
| 1,000+ | $0.79 | $0.79 |
| 2,000+ | $0.76 | $0.76 |
| 4,000+ | $0.73 | $0.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
150V maximum.
8-PowerTDFN (8-PQFN 5x6mm) surface mount package.
-55°C to 150°C (junction).
Yes, RoHS3 compliant with no lead, bromide, or halogen.
56A continuous at Tc=25°C, 10A at Ta=25°C.
31 milliohms maximum at Vgs=10V, Id=34A.
50 nC maximum at Vgs=10V.
