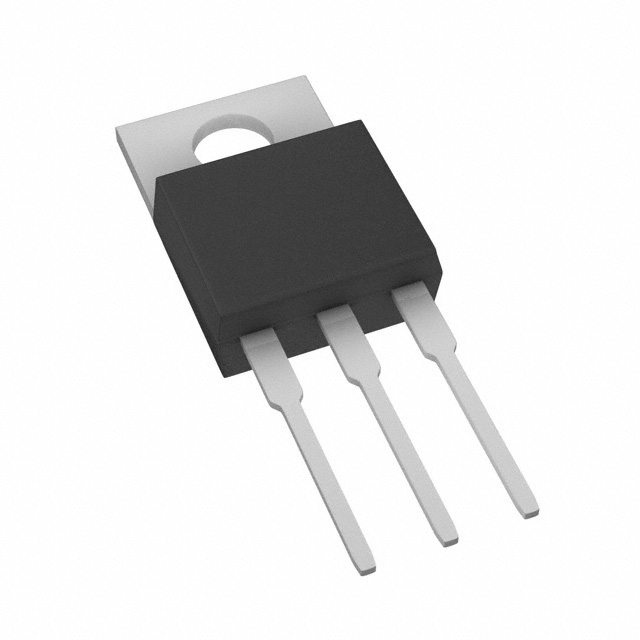

The IRF9520 is a P-Channel enhancement-mode MOSFET designed for medium-power switching applications. It features a drain-source breakdown voltage of 100V and can handle a continuous drain current of 6A at a case temperature of 25°C. The maximum on-resistance is 600mOhm at a gate-source voltage of 10V and a drain current of 3.5A, providing efficient switching performance.
The device offers a gate threshold voltage of 4V at 250µA drain current, and a maximum total gate charge of 22nC at 10V, enabling relatively fast switching. The input capacitance is 300pF at 25V drain-source voltage. Maximum power dissipation is 40W at case temperature.
The IRF9520 is supplied in a standard TO-220-3 through-hole package (TO-220AB), suitable for PCB mounting with heatsinking. The operating junction temperature range is -55°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.19 | $1.19 |
| 10+ | $1.12 | $1.12 |
| 100+ | $1.06 | $1.06 |
| 1,000+ | $1.00 | $1.00 |
| 10,000+ | $0.94 | $0.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage (Vdss) is rated at 100V.
The maximum continuous drain current is 6A at a case temperature of 25°C.
The maximum on-resistance is 600mOhm at Vgs = 10V and Id = 3.5A.
The IRF9520 is supplied in a TO-220-3 through-hole package (supplier device package: TO-220AB).
The operating junction temperature range is -55°C to 150°C.
