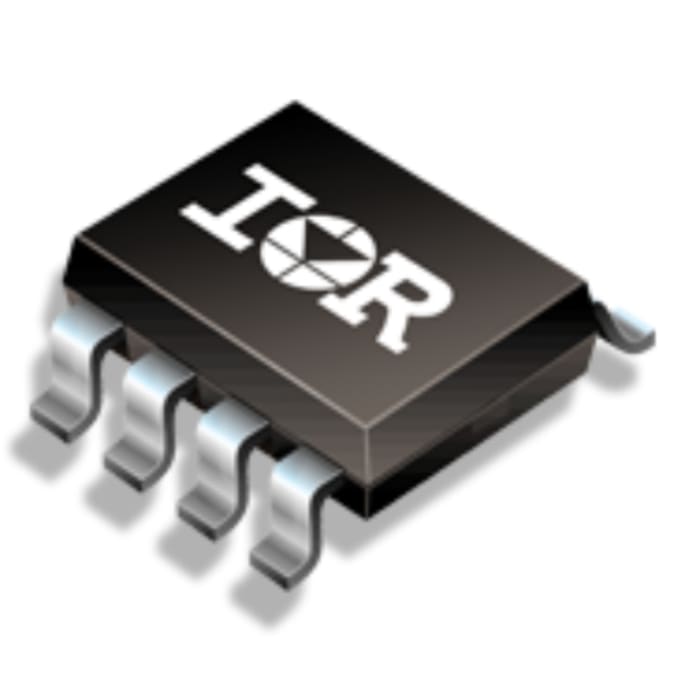

IRF9388TRPBF P-Channel MOSFET from Infineon Technologies with 30V drain-source voltage and 12A continuous drain current. Surface mount in SO-8 package.
Mfr Part #:

IRF9388TRPBF

Available from 3 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
P-Channel MOSFET from Infineon Technologies with 30V drain-source voltage and 12A continuous drain current. Surface mount in SO-8 package.
✓ Total Stock: 14,113 pcs

IRF9388TRPBF Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
9,020 pcs
On Request
9020 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
5,027 pcs
On Request
5027 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
66 pcs
On Request
66 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IRF9388TRPBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

IRF9388TRPBF Description

Short technical summary and product information.

The IRF9388TRPBF is a P-Channel MOSFET from Infineon Technologies designed for power management applications. It features a drain-source voltage (Vdss) of 30V and a continuous drain current of 12A at 25°C. The device offers low on-resistance: 11.9 mOhm maximum at VGS=10V and 8.5 mOhm at VGS=20V. Gate charge is 52 nC maximum at VGS=10V, and input capacitance is 1680 pF typical. Switching speeds are characterized with typical turn-on delay of 19 ns, rise time 57 ns, turn-off delay 80 ns, and fall time 66 ns. The MOSFET is housed in an industry-standard SO-8 (8-SOIC) surface mount package and operates over a junction temperature range of -55°C to 150°C. It is RoHS3 compliant and halogen free, making it suitable for environmentally sensitive designs. Typical applications include adaptor input switches for notebook PCs and general load switching.

IRF9388TRPBF Quick Information

Product Type: P-Channel MOSFET
Canonical Name: IRF9388TRPBF P-Channel MOSFET, 30V, 12A, SO-8
Subcategory: Single MOSFET

IRF9388TRPBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

IRF9388TRPBF Features

  • P-Channel MOSFET with 30V drain-source voltage.
  • Continuous drain current rated at 12A.
  • Low on-resistance of 11.9 mOhm at 10V.
  • Surface mount SO-8 package.
  • RoHS compliant and halogen free.

IRF9388TRPBF Applications

  • Ideal for adaptor input switch in notebook PCs.
  • Used in power management circuits.
  • Suitable for load switching applications.
  • Can be used in DC-DC converters.
  • Applicable for battery protection circuits.

IRF9388TRPBF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating of the IRF9388TRPBF?

The drain-source voltage (Vdss) is 30V.

What package does the IRF9388TRPBF come in?

It comes in an 8-SOIC (0.154", 3.90mm Width) surface mount package, also known as SO-8.

What is the operating temperature range of the IRF9388TRPBF?

The operating junction temperature range is -55°C to 150°C.

Is the IRF9388TRPBF RoHS compliant?

Yes, it is RoHS3 compliant and halogen free as per the datasheet.

What is the total gate charge of the IRF9388TRPBF?

The total gate charge is 52 nC maximum at VGS=10V.

What is the on-resistance of the IRF9388TRPBF?

The static drain-to-source on-resistance is 11.9 mOhm maximum at VGS=10V, ID=12A.

What are the switching speeds of the IRF9388TRPBF?

Typical turn-on delay time is 19 ns, rise time 57 ns, turn-off delay 80 ns, fall time 66 ns.
