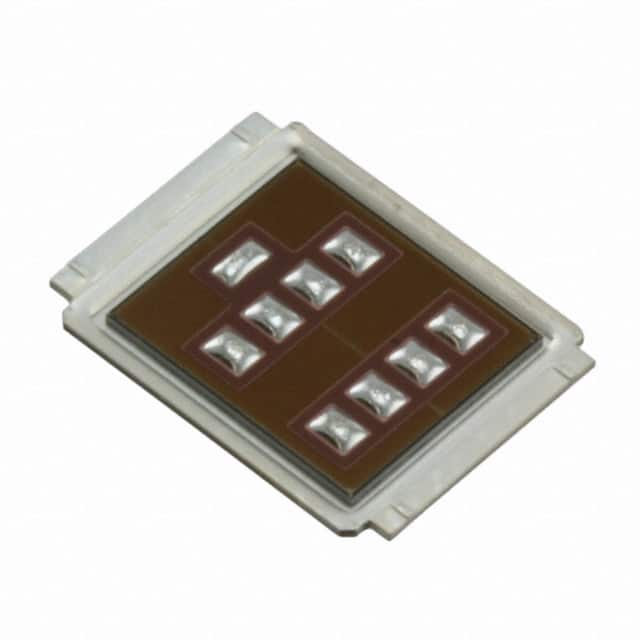

The IRF7759L2TR1PBF is an N-Channel power MOSFET using Infineon's HEXFET silicon technology in a DirectFET Isometric L8 package. It is rated for a drain-to-source voltage of 75V and a continuous drain current of 26A at 25°C ambient (375A at 25°C case). The device offers a maximum on-resistance of 2.3mΩ at Vgs=10V and Id=96A, with a typical value of 1.8mΩ. Gate charge is 300nC maximum at Vgs=10V, with a typical value of 200nC.
The DirectFET package enables a low profile of less than 0.7mm and supports dual-sided cooling for improved thermal performance. The device is surface-mountable and compatible with existing surface mount techniques. It is optimized for high-frequency switching and synchronous rectification applications, offering low conduction losses and high Cdv/dt immunity.
The IRF7759L2TR1PBF is RoHS compliant, lead-free (qualified up to 260°C reflow), and halogen free. It is supplied in tape and reel packaging with 1000 pieces per reel.
The maximum drain-to-source voltage (Vdss) is 75V.
The maximum continuous drain current is 26A at Ta=25°C.
The maximum on-resistance is 2.3mΩ at Vgs=10V and Id=96A, with a typical value of 1.8mΩ at Vgs=10V.
The junction operating temperature range is -55°C to 175°C.
Yes, the IRF7759L2TR1PBF is RoHS compliant and halogen free.
It uses the DirectFET Isometric L8 package, which is surface mount and has a low profile of less than 0.7mm.
