| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,932 pcs
|
1932 pcs | On Request | 1 | On Request | On Request | 0308 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs(th) (Max) @ Id |
The IRF7530TR is a dual N-Channel enhancement-mode MOSFET manufactured by Infineon Technologies. It is designed for high-efficiency power management applications where space is at a premium.
This device integrates two independent N-Channel MOSFETs in a single Micro8 surface-mount package. Key electrical specifications include a maximum drain-to-source voltage (Vdss) of 20V and a maximum continuous drain current of 5.4A. The maximum on-resistance (Rds(on)) is 30mOhm at a gate-source voltage of 4.5V and a drain current of 5.4A. The device has a maximum gate charge (Qg) of 26nC at Vgs=4.5V and an input capacitance (Ciss) of 1310pF at Vds=15V.

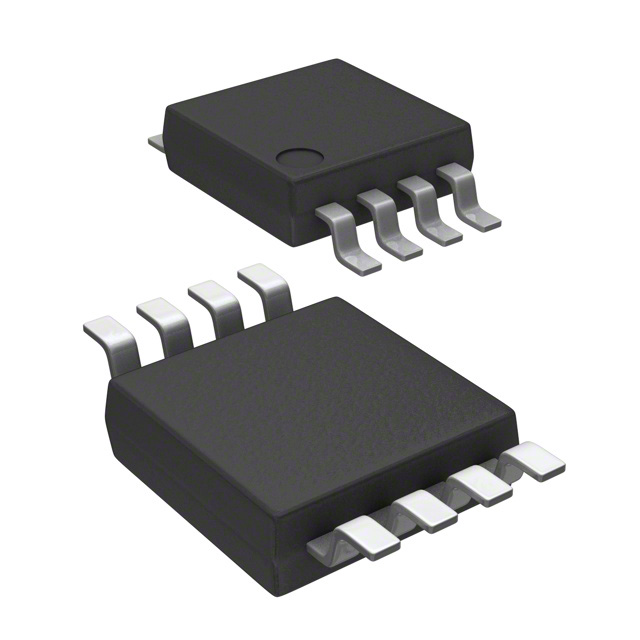

The MOSFET is housed in an 8-TSSOP or 8-MSOP package with a 0.118" (3.00mm) width, also known as the Micro8 supplier device package. It is rated for surface mount assembly and can operate over a junction temperature range of -55°C to 150°C. The maximum power dissipation is 1.3W.
| Qty | Low | High |
|---|---|---|
| 4,000+ | $6.44 | $6.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage (Vdss) is 20V.
The maximum continuous drain current is 5.4A.
The maximum on-resistance (Rds(on)) is 30mOhm at Vgs=4.5V and Id=5.4A.
The IRF7530TR is available in an 8-TSSOP or 8-MSOP surface mount package, also known as Micro8.
The operating junction temperature range is -55°C to 150°C.
The RoHS status is unverified. The existing database indicates RoHS3 Compliant, but this conflicts with distributor data and should be confirmed with the manufacturer.
