Mfr Part #:

IRF7316TRPBF

Mfr Name: Infineon

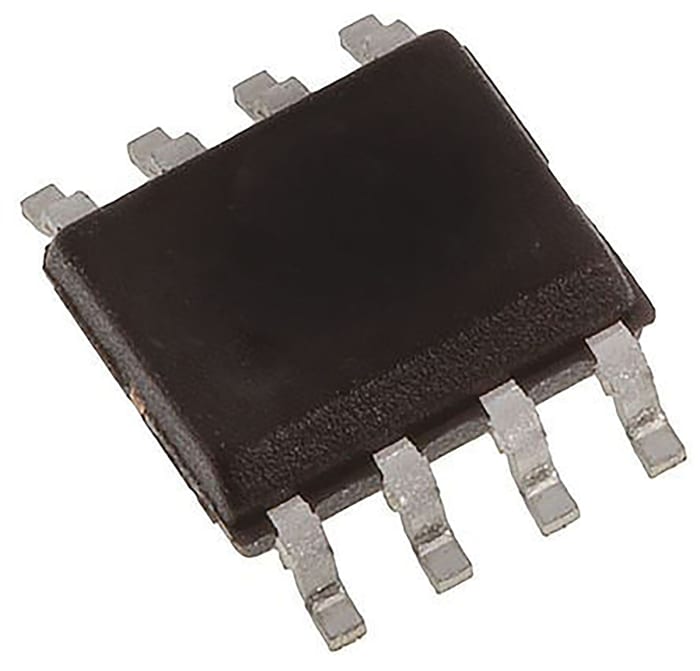

The Infineon IRF7316TRPBF is a P-Channel MOSFET with a 30V drain-source voltage and a continuous drain current of 4.9A. It comes in an 8-pin SOIC surface mount package.

✓ Total Stock: 43,206 pcs

$ Price Range: $1.67

IRF7316TRPBF Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	35,671 pcs On Request	35671 pcs	On Request	1	On Request	On Request	21+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	4,030 pcs On Request	4030 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	3,505 pcs On Request	3505 pcs	On Request	1	On Request	On Request	21+	On Request	On Request

IRF7316TRPBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Channel Type	P-Channel
Forward Voltage	-0.78 V
Height	1.5 mm
Length	5 mm
Operating Temperature	-55 °C / 150 °C

View Similar Products (0)

IRF7316TRPBF Description

Short technical summary and product information.

The Infineon IRF7316TRPBF is a P-Channel power MOSFET designed for various electronic applications. It features a maximum drain-source voltage of 30V and a maximum continuous drain current of 4.9A. The MOSFET has a low maximum drain-source on-resistance of 98mΩ, contributing to efficient operation.

This device is housed in an 8-pin SOIC surface mount package, with dimensions of 5mm in length and 1.5mm in height, making it suitable for space-constrained designs. The operating temperature range is from -55°C to 150°C, providing robustness in different environments. The typical gate charge is 23nC at Vgs=10V.

Infineon's HEXFET power MOSFETs are known for their performance and efficiency. This P-channel device, with its isolated configuration, offers design flexibility. It is part of Infineon's comprehensive portfolio of MOSFETs, including families like CoolMOS and OptiMOS, aimed at delivering high efficiency and power density.

IRF7316TRPBF Quick Information

Product Type: MOSFET

Series: HEXFET

Canonical Name: Infineon IRF7316TRPBF P-Channel MOSFET

Subcategory: P-Channel MOSFET

IRF7316TRPBF Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IRF7316TRPBF Estimated Pricing

Qty	Low	High
1+	$1.67	$1.67

Estimated market price range - modelled values for guidance only, not live distributor offers.

IRF7316TRPBF Features

P-Channel MOSFET with 30V drain-source voltage.
Maximum continuous drain current of 4.9A.
Low on-resistance of 98mΩ.
Surface mount 8-pin SOIC package.
Wide operating temperature range.

IRF7316TRPBF Applications

Used in power switching applications
Suitable for low to moderate power circuits
Ideal for electronic load control
Applicable in power management modules

IRF7316TRPBF FAQs

5 frequently asked questions generated from this part’s specifications.

What is the maximum continuous drain current for the IRF7316TRPBF?

The maximum continuous drain current is 4.9A.

What is the maximum drain-source voltage of the IRF7316TRPBF?

The maximum drain-source voltage is 30V.

What is the operating temperature range for this MOSFET?

The operating temperature range is from -55°C to 150°C.

What package type is the IRF7316TRPBF MOSFET supplied in?

It is supplied in an 8-pin SOIC surface mount package.

What is the channel type of the IRF7316TRPBF?

The channel type is P-Channel.
