| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
913 pcs
|
913 pcs | On Request | 1 | On Request | On Request | 06+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Feature | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The IRC634PBF is an N-Channel power MOSFET from Vishay Dale, designed for medium-voltage switching applications. It offers a maximum drain-source voltage of 250V and continuous drain current of 8.1A, making it suitable for a variety of power management circuits. The device features a low on-resistance of 450 mOhm at 4.9A and 10V gate drive, ensuring efficient operation.
This MOSFET includes a current sensing feature, which allows for accurate monitoring of load current without external sense resistors. The gate charge is 41 nC at 10V, and input capacitance is 770 pF at 25V, enabling moderate switching speeds. The device is driven with a nominal 10V gate voltage and can withstand up to ±20V on the gate.

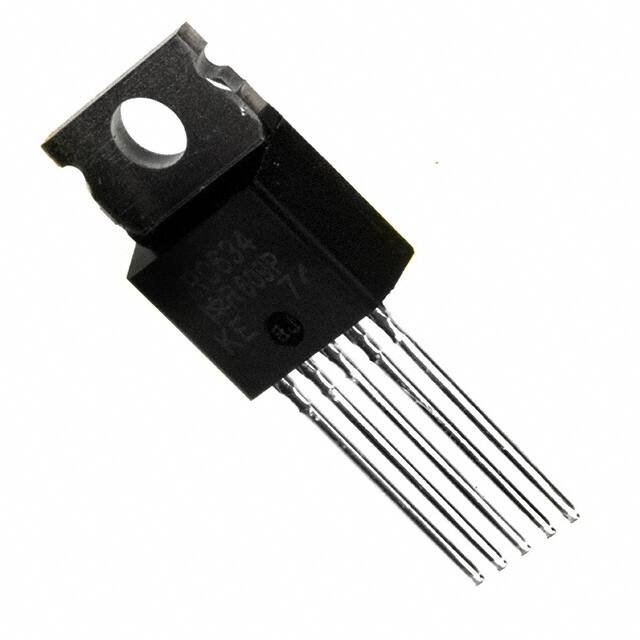

The IRC634PBF is housed in a through-hole TO-220-5 package, providing robust thermal performance. Maximum power dissipation is 74W at case temperature, and the operating junction temperature range is -55°C to 150°C. It is listed as RoHS3 compliant, REACH unaffected, and MSL level 1 unlimited.
| Qty | Low | High |
|---|---|---|
| 1,000+ | $0.92 | $0.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 250 V.
It is a through-hole TO-220-5 package.
The operating junction temperature range is -55°C to 150°C.
It is listed as RoHS3 compliant.
Yes, it includes a current sensing feature.
The maximum gate charge is 41 nC at 10 V.
