| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,236 pcs
|
3236 pcs | On Request | 1 | On Request | On Request | 18+16+12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Tape & Reel | |
| Type | |
| Voltage |

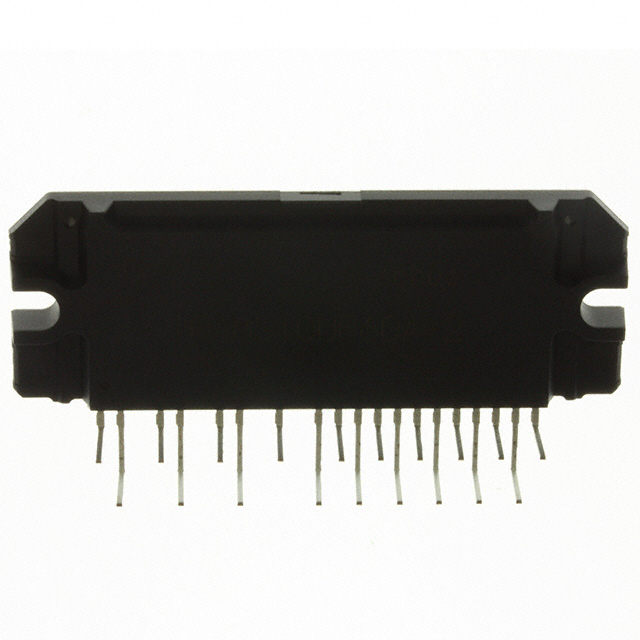

The IRAMS10UP60A-2 is a 3-Phase IGBT power driver module manufactured by ON Semiconductor. Designed for AC motor control applications, this hybrid module integrates IGBT technology with a three-phase configuration, delivering a continuous output current of 10 A. The module provides an isolation voltage of 2000 Vrms, ensuring safe operation in high-voltage environments.
Packaged in a 23-PowerSIP Module with 19 formed leads, the device is through-hole mountable for robust mechanical attachment on printed circuit boards. The compact SIP package optimizes space while maintaining thermal and electrical performance, making it suitable for industrial drive systems and three-phase inverters.
This component is intended for use in motor drive circuits where reliable switching and isolation are critical. The module's specifications support efficient power conversion in applications such as variable frequency drives, servo drives, and power supplies for industrial equipment.
3 Phase
10 A
2000 Vrms
23-PowerSIP Module, 19 Leads, Formed Leads
RoHS3 Compliant (unverified)
Through Hole
