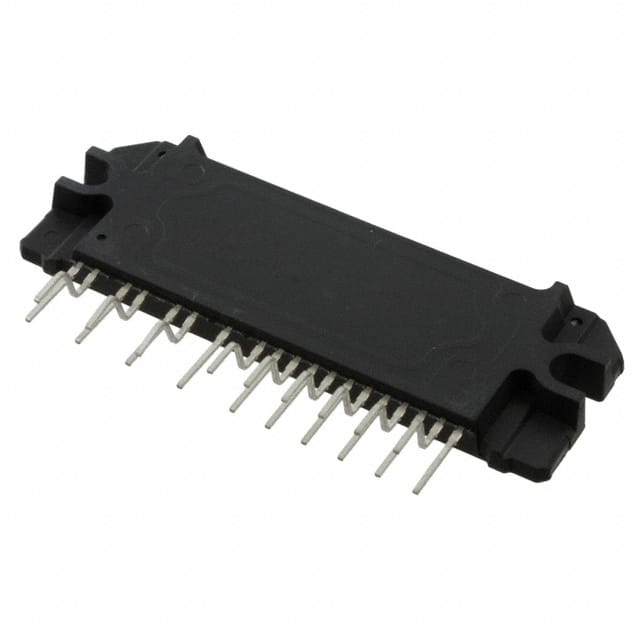

The IRAMS06UP60B is a 600V, 6A IGBT power driver module designed for appliance motor drive applications. It integrates gate drivers, bootstrap diodes, and an internal shunt resistor for current sensing and overcurrent protection. The module uses Non Punch Through IGBT technology for low VCE(on) and includes undervoltage lockout, cross-conduction prevention, and Schmitt-triggered input logic.
Key electrical specifications include a maximum collector-emitter voltage of 600V, a bus input voltage of 450V, and an RMS phase current of 6A at 25°C (3A at 100°C). The module supports a PWM carrier frequency up to 20kHz and provides 2000V RMS isolation. It is housed in a 23-PowerSIP module with 19 formed leads and through-hole mounting.
The maximum collector-emitter voltage (VCES) is 600V.
The RMS phase current is 6A at TC=25°C and 3A at TC=100°C.
It comes in a 23-PowerSIP module with 19 formed leads for through-hole mounting.
The operating junction temperature range is -40°C to +150°C.
The RoHS status is listed as compliant, but this is unverified and should be confirmed with the manufacturer.
