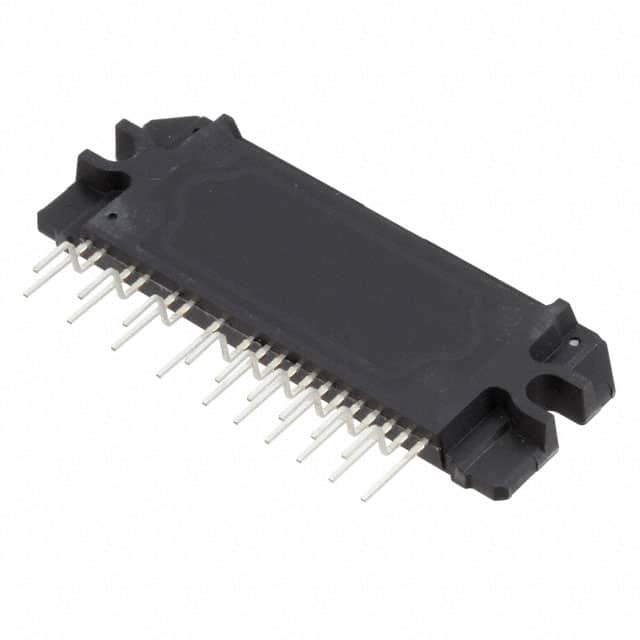

The IRAMS06UP60A is an integrated power module from Infineon Technologies, optimized for electronic motor control in appliance applications. It combines a 3-phase IGBT inverter with integrated gate drivers and bootstrap diodes in a single, fully isolated 23-PowerSIP package.
Key electrical specifications include a maximum collector-emitter voltage of 600V, a positive bus input voltage of 450V, and an RMS phase current rating of 6A at 25°C (3A at 100°C). The module supports a PWM carrier frequency up to 20 kHz and offers a peak phase current capability of 10A. It provides 2000Vrms of isolation and operates over a junction temperature range of -40 to +150°C.
Designed for through-hole mounting, the module includes built-in protection features such as overcurrent shutdown, undervoltage lockout, and a temperature monitor. The integration of bootstrap diodes and a single polarity power supply simplifies design and reduces component count, making it suitable for variable frequency compressor drives and electronic fan controls.
The maximum collector-emitter voltage (VCES) is 600 V.
The RMS phase current is 6 A at a case temperature of 25°C and 3 A at 100°C.
The isolation voltage is 2000 Vrms for 1 minute.
The operating junction temperature range for both the IGBT/diodes and the driver IC is -40 to +150 °C.
It uses a 23-PowerSIP Module, 19 Leads, Formed Leads package with through-hole mounting.
The RoHS status is listed as RoHS3 Compliant, but this is unverified and has low confidence.
