| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
650 pcs
|
650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Orientation | |
| Radiant Intensity (Ie) Min @ If | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

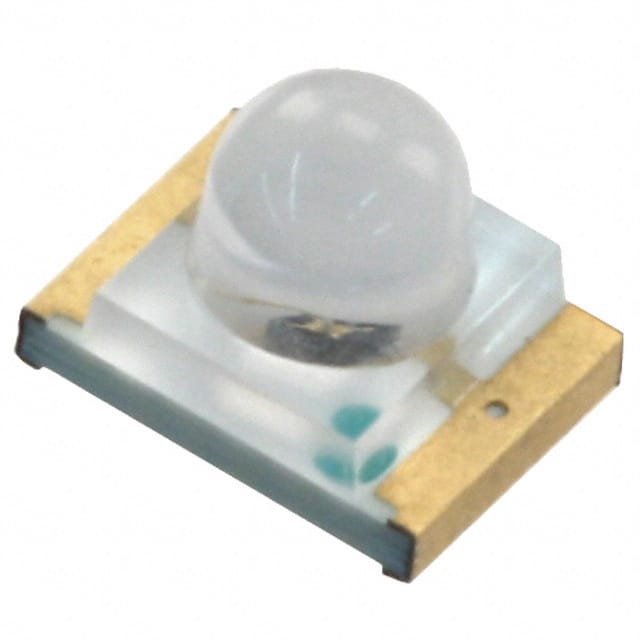

The Everlight Electronics IR42-21C/TR8 is an infrared (IR) emitter designed for various optoelectronic applications. It operates with a typical forward voltage of 1.2V and a maximum DC forward current of 65mA. The emitter's wavelength is 940nm, and it provides a radiant intensity of 1mW/sr at 20mA.
This component features a 30° viewing angle and is housed in a 2-SMD, No Lead package, making it suitable for surface mount technology (SMT) assembly. The operating temperature range is from -25°C to 85°C (TA).
Environmental compliance includes RoHS3 status. The part is supplied in Tape & Reel or Cut Tape packaging. This IR emitter is suitable for applications requiring focused infrared light emission.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The wavelength of the IR42-21C/TR8 is 940nm.
The typical forward voltage for the IR42-21C/TR8 is 1.2V.
The maximum DC forward current for the IR42-21C/TR8 is 65mA.
The viewing angle of the IR42-21C/TR8 is 30°.
The operating temperature range for the IR42-21C/TR8 is -25°C to 85°C (TA).
The IR42-21C/TR8 is in a 2-SMD, No Lead package and is suitable for surface mounting.
