IR3899MTRPBF The Infineon Technologies IR3899MTRPBF is a highly integrated and efficient DC/DC buck switching regulator. It offers an adjustable output voltage and a maximum output current of 9A.
Mfr Part #:

IR3899MTRPBF

Available from 2 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies IR3899MTRPBF is a highly integrated and efficient DC/DC buck switching regulator. It offers an adjustable output voltage and a maximum output current of 9A.
✓ Total Stock: 10,500 pcs
$ Price Range: $0.16

IR3899MTRPBF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
8,000 pcs
On Request
8000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IR3899MTRPBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Input Voltage
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Current
Output Type
Output Voltage
Supplier Device Package
Synchronous Rectifier
Tape & Reel
Topology
Voltage
View Similar Products (0)

IR3899MTRPBF Description

Short technical summary and product information.

The IR3899MTRPBF from Infineon Technologies is a highly integrated and efficient synchronous buck regulator designed for various power delivery applications. This device operates within a wide input voltage range of 1V to 21V and provides an adjustable output voltage from 0.5V up to 18.06V, with a maximum output current capability of 9A.



Featuring a programmable switching frequency that can be set between 300kHz and 1.5MHz, the IR3899MTRPBF allows for optimization of solution size and efficiency. It includes essential protection functions such as thermally compensated current limit, over-voltage protection, and thermal shutdown for system reliability.

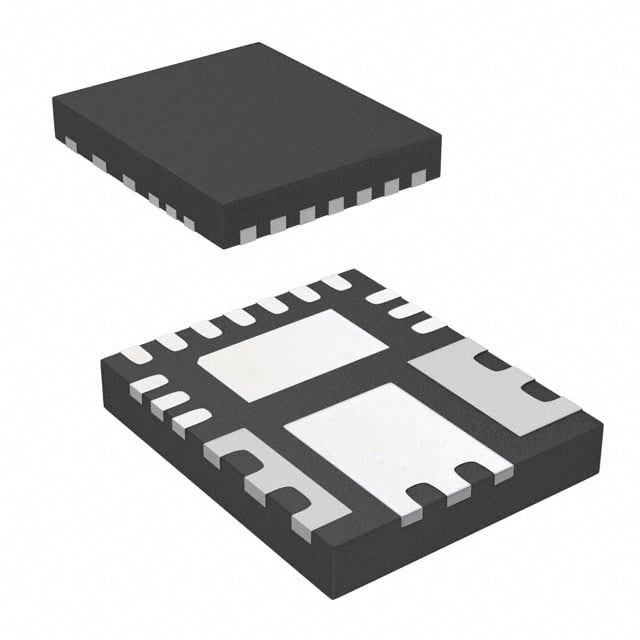

The regulator is housed in a compact 16-PowerVQFN package, measuring 4mm x 5mm, making it suitable for space-constrained designs. It is designed for surface mount applications and operates across a wide temperature range of -40°C to 125°C (TJ).



This component is ideal for applications requiring precise and efficient power conversion, including netcom, embedded telecom systems, server, and storage applications. Its integrated MOSFET drivers and bootstrap diode simplify external component count.

IR3899MTRPBF Quick Information

Product Type: DC DC Switching Regulator
Series: SupIRBuck®
Canonical Name: IR3899MTRPBF Synchronous Buck Regulator
Subcategory: DC DC Switching Regulator

IR3899MTRPBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 2 (1 Year)
REACH Status: REACH Unaffected

IR3899MTRPBF Estimated Pricing

Qty Low High
1+ $0.16 $0.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

IR3899MTRPBF Features

  • Highly integrated synchronous buck regulator.
  • Adjustable output voltage from 0.5V to 18.06V.
  • Maximum output current of 9A.
  • Programmable switching frequency up to 1.5MHz.
  • Compact 4mm x 5mm 16-PowerVQFN package.

IR3899MTRPBF Applications

  • Suitable for netcom applications.
  • Used in embedded telecom systems.
  • Ideal for server applications.
  • Applicable in storage systems.
  • Supports distributed point-of-load architectures.

IR3899MTRPBF FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the IR3899MTRPBF?

The input voltage range is from 1V to 21V.

What is the adjustable output voltage range?

The output voltage can be adjusted from 0.5V to 18.06V.

What is the maximum output current?

The maximum output current is 9A.

What is the programmable switching frequency range?

The switching frequency is programmable from 300kHz to 1.5MHz.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C (TJ).

What package type is the IR3899MTRPBF supplied in?

It is supplied in a 16-PowerVQFN package for surface mounting.
