| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Output Voltage | |
| SVHC Present | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Tape & Reel | |
| Topology | |
| Voltage |
The Infineon Technologies IR38060MTRPBF is a single-input voltage, synchronous buck regulator designed for high-current, low-output voltage applications. It offers an adjustable output voltage ranging from 0.5V up to 0.875*PVin, with a reference voltage accuracy of 0.5%.
This regulator operates with a programmable switching frequency between 400kHz and 1.5MHz, configurable via Rt/Sync pin or PMBus. It supports an input voltage range of 5.5V to 16V and can deliver up to 6A of current. The operating junction temperature range is -40°C to 125°C.

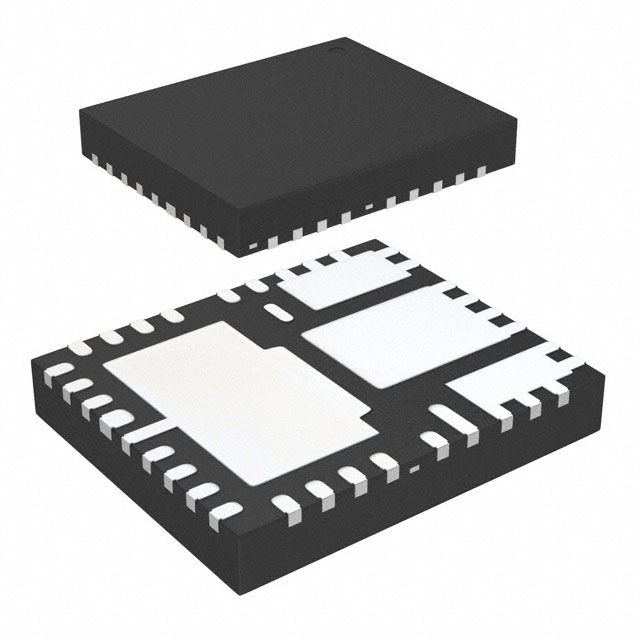

The IR38060MTRPBF is housed in a compact 5mmx6mm PQFN package, suitable for surface mounting. It includes features like internal soft-start, pre-bias start-up, and PMBus interface for configuration, control, and telemetry. Applications include server, netcomm, and embedded telecom systems.
Key electrical specifications include a 6A current capability, adjustable output voltage, and a switching frequency up to 1.5MHz. The device operates within a -40°C to 125°C junction temperature range and is available in a 35-PQFN (5x6) package.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.37 | $4.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum output voltage is 0.5V, and the maximum is 0.875 times the input voltage (PVin).
The input voltage (PVin) range is 5.5V to 16V.
The switching frequency is programmable from 400kHz to 1.5MHz using the Rt/Sync pin or PMBus.
The junction temperature range is -40°C to 125°C.
It is available in a 35-PQFN (5x6) surface mount package.
Yes, it features synchronous rectification.
The output current rating is 6A.
