| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,487 pcs
|
5487 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
160 pcs
|
160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Input Voltage | |
| Lead Style | |
| Mounting Type | |
| Output Current | |
| Output Voltage | |
| Tape & Reel | |
| Termination Style |

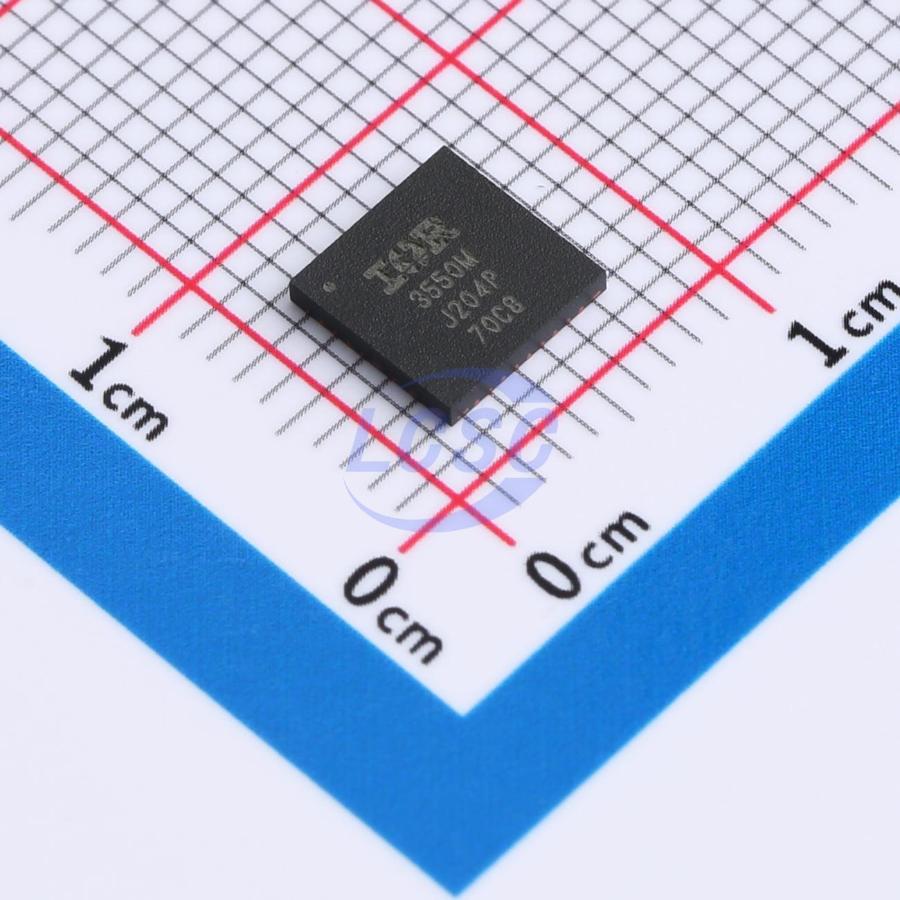

The Infineon IR3550MTRPBF is a highly integrated PowIRstage® solution designed for voltage regulation in demanding applications such as CPUs, GPUs, and DDR memory arrays. This device combines a gate driver, control MOSFET, synchronous MOSFET, and Schottky diode into a compact 6mm x 6mm x 0.9mm PQFN-32 package.
Key electrical specifications include an input voltage operating range up to 15V and an output current capability of 60A DC. It achieves peak efficiencies of up to 95% at 1.2V and supports switching frequencies up to 1.0MHz, enabling high performance transient response and miniaturization of external components.
The IR3550MTRPBF incorporates features like an integrated current sense amplifier for accurate current monitoring, Body-Braking® load transient support, and diode-emulation for high efficiency at light loads. It is compatible with 3.3V PWM logic and is compliant with Intel DrMOS V4.0.
Designed for efficient dual-sided cooling, this component is suitable for high current, low profile DC-DC converters. Its PCB footprint is compatible with IR3551 and IR3553 devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Up to 15V.
60A DC.
Up to 95% peak efficiency at 1.2V.
PQFN-32 (6mm x 6mm x 0.9mm).
Yes, compliant with Intel DrMOS V4.0.
Up to 1 MHz.
Compatible with 3.3V PWM logic.
