| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21,333 pcs
|
21333 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Fault Protection | |
| Interface | |
| Mounting Type | |
| Package / Case | |
| Pitch | |
| SVHC Present | |
| Supply Voltage | |
| Tape & Reel |

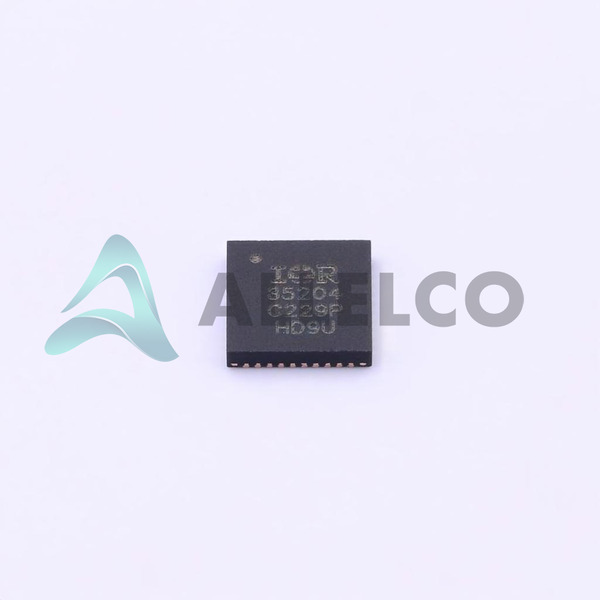

The Infineon IR35204MTRPBF is a 3+1 dual output digital multi-phase PWM controller designed for CPU voltage regulation. It operates with a nominal supply voltage of 3.3V and supports ambient operating temperatures from -40°C to 85°C, with a junction temperature range of -40°C to 125°C.
Key features include an I2C/SMBus/PMBus system interface for telemetry reporting and comprehensive fault protection including OVP, UVP, OCP, OTP, and CAT_FLT. The switching frequency can be set from 194KHz to 2MHz per phase.
This controller is available in a 40-pin, 5x5mm QFN package with a 0.4mm pitch, designed for surface mount applications. It is supplied in tape and reel packaging with a standard quantity of 3000 units.
The IR35204MTRPBF is compliant with Intel® VR12, VR12.5, and IMVP8 specifications, as well as AMD SVI2 specifications, making it suitable for servers, high-end desktop CPUs, and high-performance graphics processors.
The supply voltage is 3.3V nominal.
The device is housed in a 40-pin QFN package measuring 5x5mm with a 0.4mm pitch.
The ambient operating temperature range is -40°C to 85°C, and the junction temperature range is -40°C to 125°C.
The switching frequency is programmable from 194kHz to 2MHz per phase in 56 steps.
The device supports I2C, SMBus, and PMBus interfaces.
Fault protection includes overvoltage (OVP), undervoltage (UVP), overcurrent (OCP), overtemperature (OTP), and catastrophic fault (CAT_FLT).
