Mfr Part #:

IR2238QPBF

Name: IR2238QPBF
Brand: Infineon Technologies
SKU: IR2238QPBF

Description:

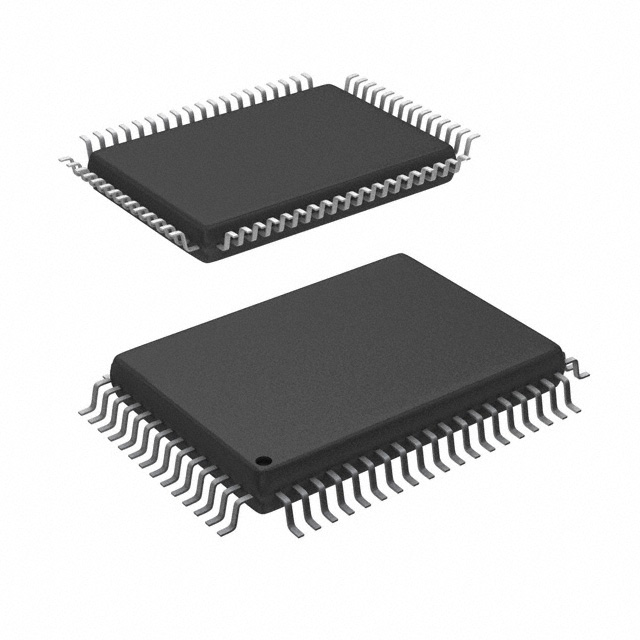

IC MOTOR DRIVER 12.5V-20V 64MQFP

Stock on Request

IR2238QPBF Description

Short technical summary and product information.

IC MOTOR DRIVER 12.5V-20V 64MQFP

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

IR2238Q

Infineon Technologies

IC MOTOR DRIVER 12.5V-20V 64MQFP

Category	Motor Drivers, Controllers
Manufacturer Name	Infineon Technologies
Applications	General Purpose
Function	Controller - Commutation, Direction Management
Interface	Parallel
Motor Type	AC, Synchronous
Mounting Type	Surface Mount
Operating Temperature	-20°C ~ 115°C (TA)
Output Configuration	Pre-Driver - Half Bridge (3)
Supplier Device Package	64-MQFP (20x14)
Technology	IGBT
Voltage	12.5V ~ 20V
