| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| High Side Voltage | |
| Lead Style | |
| Mounting Type | |
| Tape & Reel |

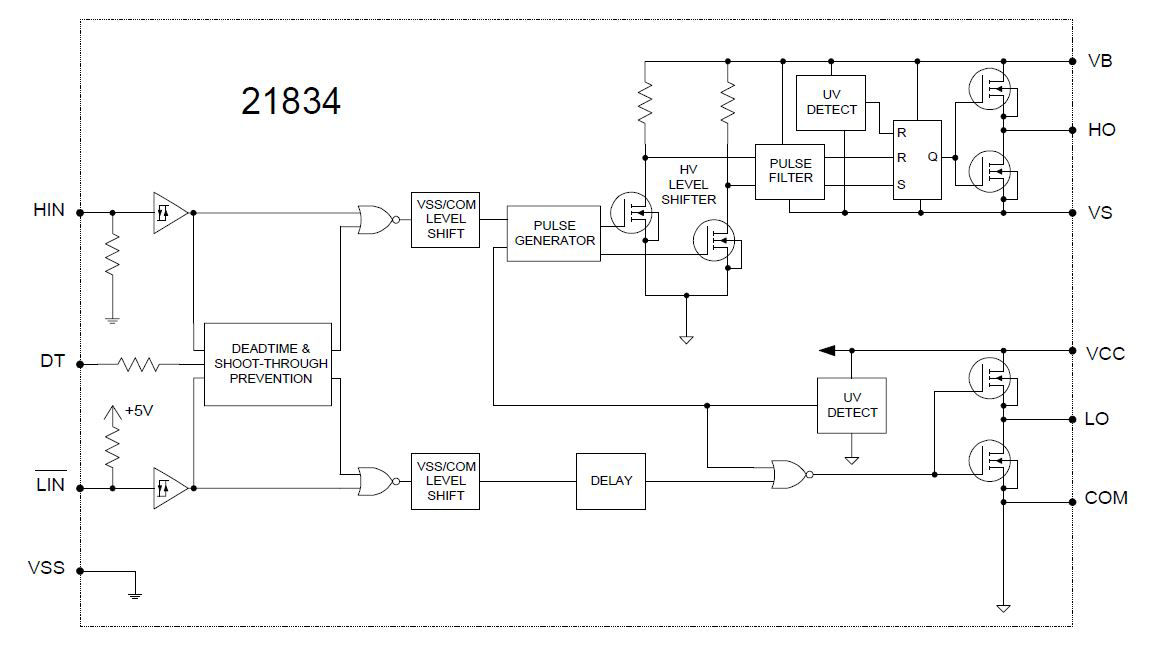

The IR21834STRPBF from Infineon Technologies is a high voltage, high speed power MOSFET and IGBT driver. It features dependent high and low side referenced output channels, built with proprietary HVIC and latch immune CMOS technologies for rugged monolithic construction.
This gate driver IC is fully operational to +600V and tolerant to negative transient voltage, with dV/dt immunity. The gate drive supply range is from 10 to 20V, and it includes undervoltage lockout for both channels. The logic input is compatible with standard CMOS or LSTTL output down to 3.3V logic.
Key electrical characteristics include an output source current capability of 1.4A and a sink current capability of 1.8A. The floating channel is designed for bootstrap operation and can drive an N-channel power MOSFET or IGBT in the high side configuration.
The IR21834STRPBF is available in a 14-lead SOIC package, suitable for surface mount applications. It is also available in a LEAD-FREE (PbF) version.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.76 | $2.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The gate drive supply voltage range is from 10V to 20V.
It is compatible with standard CMOS or LSTTL output down to 3.3V logic, and 5V logic.
The output source current capability is 1.4A.
The output sink current capability is 1.8A.
The IR21834STRPBF is fully operational to +600V.
It is available in a 14-lead SOIC package.
