| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,415 pcs
|
5415 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
875 pcs
|
875 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Junction Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Supply Current | |
| Tape & Reel |

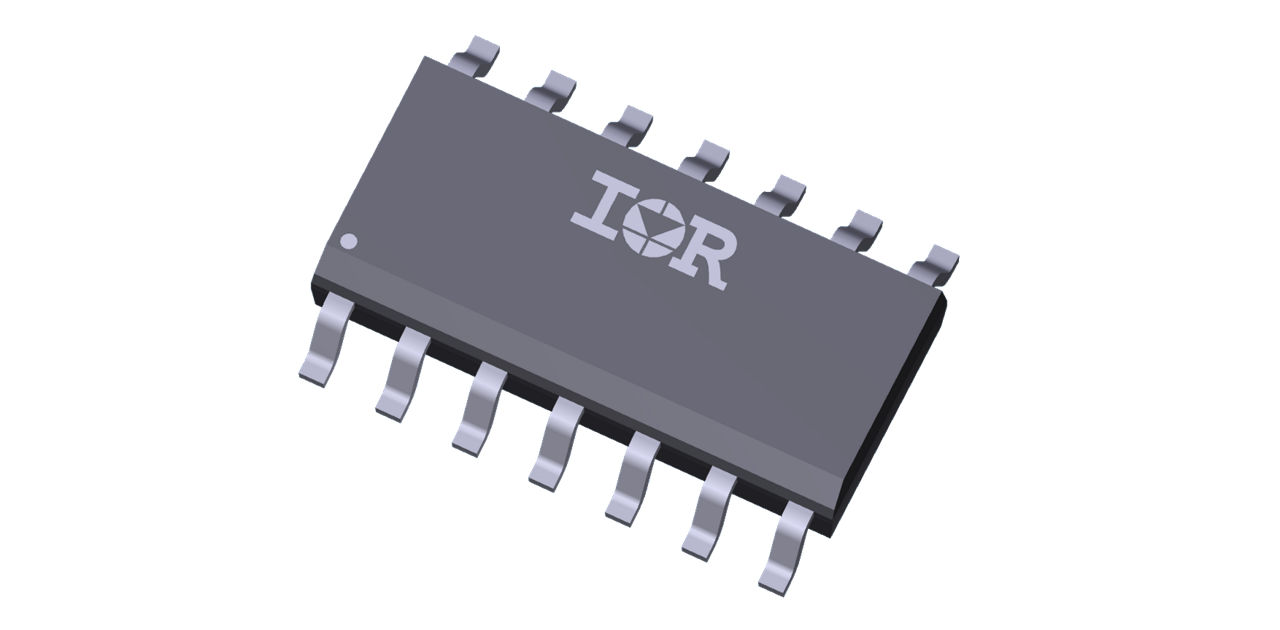

The IR2156STRPBF from Infineon is a versatile ballast control integrated circuit designed for half-bridge driver applications. It combines a high-voltage gate driver with a programmable oscillator and state diagram, simplifying ballast control designs.
Key features include programmable preheat frequency, programmable preheat time, internal ignition ramp, programmable over-current threshold, and programmable run frequency. It also supports programmable dead-time, DC bus under-voltage reset, and a shutdown pin with hysteresis for comprehensive protection.
This IC is suitable for applications requiring precise control over ballast operation. It includes features such as protection from lamp strike failures, filament failures, and an automatic restart function. The device also incorporates an internal 15.6V zener clamp diode on Vcc, micropower startup, and latch immunity with ESD protection.
The IR2156STRPBF is available in SOICN14 and PDIP14 packages, offering flexibility for different board layouts and environmental requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.43 | $2.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IR2156STRPBF is available in SOIC-14 and PDIP-14 packages.
625V.
500mA.
Yes, it has an internal 15.6V zener clamp diode on Vcc.
Preheat frequency, preheat time, run frequency, dead time, and over-current threshold are programmable.
150µA typical.
150°C.
