| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Current | |
| Driven Configuration | |
| Gate Type | |
| High Side Voltage | |
| Input Type | |
| Logic Voltage | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Rise | |
| Supplier Device Package | |
| Voltage |
The Infineon Technologies IR2101STRPBF is a gate driver integrated circuit suitable for half-bridge applications. It features independent channels and supports IGBT and N-Channel MOSFET gate types. The device operates with a high side voltage of 600V and an input voltage range of 10V to 20V, with logic voltages of 0.8V and 3V.

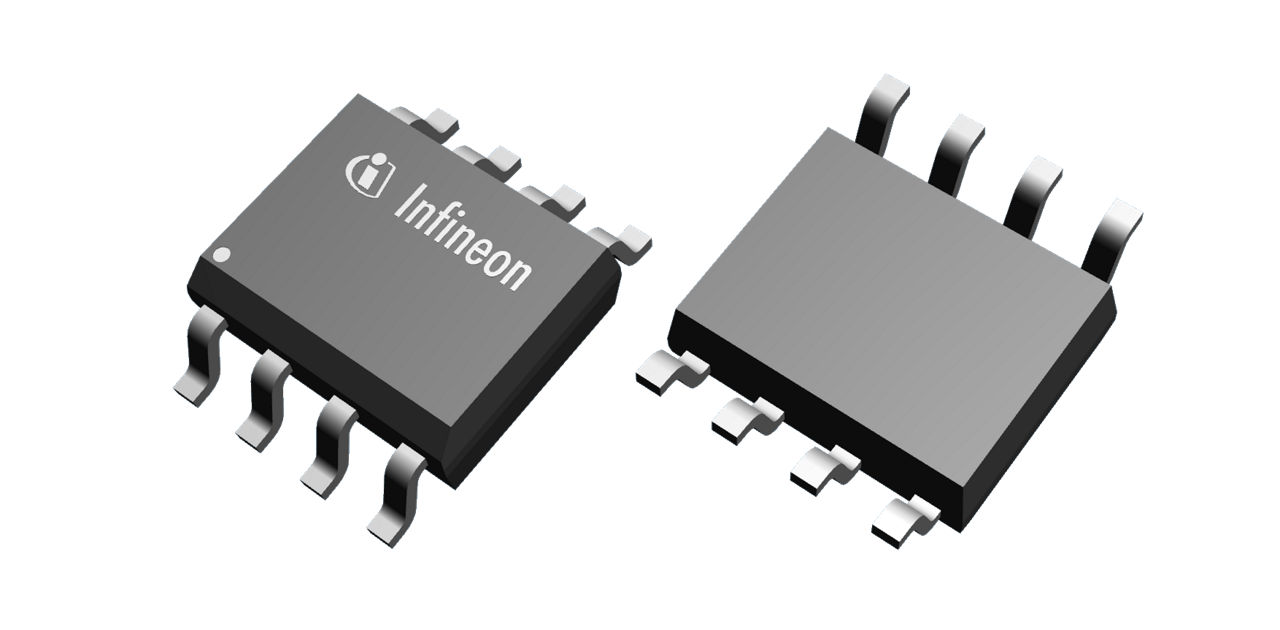

This gate driver IC is housed in an 8-SOIC package and is designed for surface mount applications. It offers current capabilities of 210mA and 360mA, with rise times of 50ns and 100ns. The operating temperature range is from -40°C to 150°C (TJ).
Key electrical characteristics include its non-inverting input type and its ability to drive configurations for IGBT and N-Channel MOSFETs. The IR2101STRPBF is a component within the broader category of power management ICs, specifically for gate driver applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.55 | $1.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 10V to 20V.
It is available in an 8-SOIC surface mount package.
The operating temperature range is -40°C to 150°C.
The high-side voltage rating is 600V.
It has 2 independent driver channels.
It can drive IGBT and N-Channel MOSFET gates.
Surface mount.
