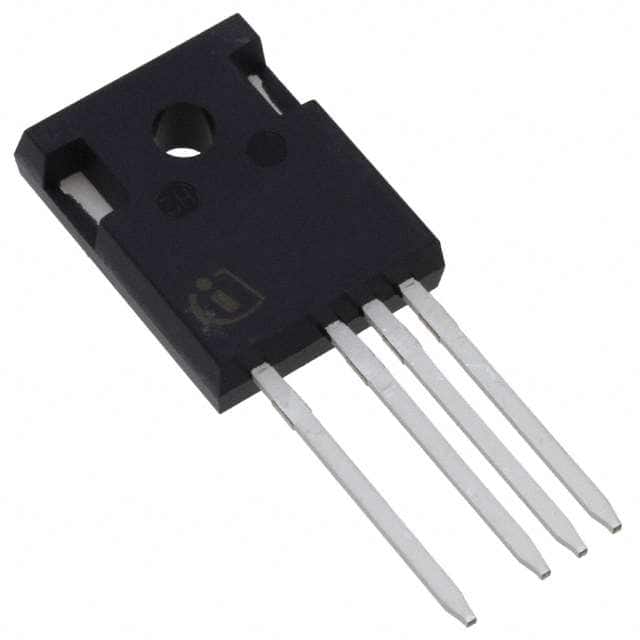

The IPZ65R045C7XKSA1 is an N-Channel enhancement mode power MOSFET from Infineon Technologies, part of the CoolMOS C7 series based on superjunction technology. It is designed for high efficiency power conversion applications.
Key electrical specifications include a drain-source voltage rating of 650V (700V maximum at Tjmax), a continuous drain current of 46A at Tc, and a maximum pulse drain current of 212A. The device features a low on-resistance of 45mOhm maximum at 24.9A and 10V gate drive, with a typical gate charge of 93nC. Input capacitance is 4340pF at 400V drain-source.
The MOSFET is housed in a through-hole PG-TO247-4 package (supplier package PG-TO247) with a driver source pin for improved gate control. It is halogen-free and qualified for industrial applications per JEDEC standards.
Applications include PFC stages, hard switching PWM stages in computing, server, telecom, UPS, and solar inverters. The device offers improved dv/dt ruggedness and best-in-class figure of merit for efficiency.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.86 | $13.86 |
| 30+ | $8.39 | $8.39 |
| 60+ | $7.73 | $7.73 |
| 120+ | $7.19 | $7.19 |
| 510+ | $6.46 | $6.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage is 650V nominal, with a maximum of 700V at Tjmax.
The maximum continuous drain current is 46A at Tc.
The package is TO-247-4 (PG-TO247).
The operating junction temperature range is -55°C to 150°C.
The device is listed as RoHS3 Compliant, but this is unverified with low confidence.
The typical gate charge is 93 nC at 10V.
The maximum on-resistance is 45 mOhm at 24.9A, 10V.
