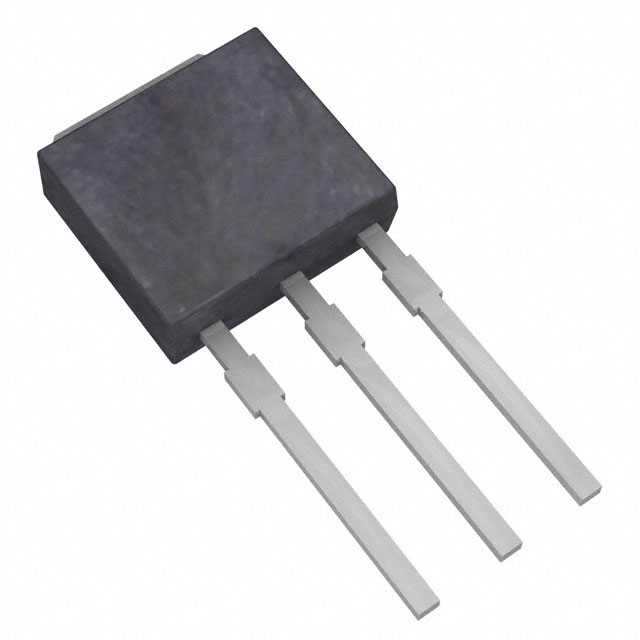

IPU60R2K1CEBKMA1 N-Channel 600V (650V Tj,max) Power MOSFET from Infineon CoolMOS CE series, rated 3.7A continuous drain current with 2.1 Ohm on-resistance, in through-hole TO-251-3 package.
Mfr Part #:

IPU60R2K1CEBKMA1

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
N-Channel 600V (650V Tj,max) Power MOSFET from Infineon CoolMOS CE series, rated 3.7A continuous drain current with 2.1 Ohm on-resistance, in through-hole TO-251-3 package.
✓ Total Stock: 5,433 pcs
$ Price Range: $0.23

IPU60R2K1CEBKMA1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
5,433 pcs
On Request
5433 pcs On Request 1 On Request On Request 15 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IPU60R2K1CEBKMA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Halogen Free
Input Capacitance (Ciss) (Max) @ Vds
Lead Style
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Storage Temperature
Supplier Device Package
Technology
Termination Style
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

IPU60R2K1CEBKMA1 Description

Short technical summary and product information.

The IPU60R2K1CEBKMA1 is a 600V N-Channel power MOSFET from Infineon's CoolMOS CE series, built on superjunction (SJ) technology. It delivers a continuous drain current of 3.7 A at Tc=25°C (6 A pulsed) and a maximum drain-to-source voltage of 600 V (650 V at maximum junction temperature). The typical on-resistance is 2.1 Ohm at Vgs=10V and Id=760mA, with a gate charge of 6.7 nC and input capacitance of 140 pF at Vds=100V.



Designed for hard-switching and resonant topologies, this MOSFET features extremely low losses due to optimized Rdson*Qg figure of merit and low output capacitance stored energy (0.76 µJ at 400V). The product is Pb-free and halogen free, qualified for standard grade applications. The through-hole TO-251-3 (IPak) package with short leads is ideal for compact designs requiring high reliability.

IPU60R2K1CEBKMA1 Quick Information

Product Type: Power MOSFET
Series: CE
Canonical Name: Infineon CoolMOS CE N-Channel Power MOSFET 600V 3.7A
Subcategory: N-Channel Single MOSFET

IPU60R2K1CEBKMA1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

IPU60R2K1CEBKMA1 Estimated Pricing

Qty Low High
1,288+ $0.23 $0.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPU60R2K1CEBKMA1 Features

  • N-Channel 600V power MOSFET.
  • 3.7A continuous drain current rating.
  • 2.1 Ohm on-resistance at 10V drive.
  • Low gate charge of 6.7 nC typical.
  • Pb-free and halogen free plating.

IPU60R2K1CEBKMA1 Applications

  • Use in PFC boost converter stages.
  • Suitable for hard switching PWM stages.
  • Ideal for PC Silverbox power supplies.
  • Used in adapter and lighting applications.

IPU60R2K1CEBKMA1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage?

The maximum drain-to-source voltage is 600 V (650 V at maximum junction temperature).

What is the continuous drain current rating?

The continuous drain current is 3.7 A at Tc=25°C (2.3 A at case temperature per DB entry).

What on-resistance does this MOSFET have?

The maximum drain-source on-resistance is 2.1 Ohm at Id=760 mA, Vgs=10 V.

What package does this device come in?

It is available in a through-hole TO-251-3 (IPak) package with short leads (PG-TO251-3).

What is the operating temperature range?

The operating junction temperature range is -40°C to +150°C.

Is this MOSFET RoHS compliant?

The part is indicated as RoHS3 compliant (unverified) and is Pb-free and halogen free per the datasheet.
