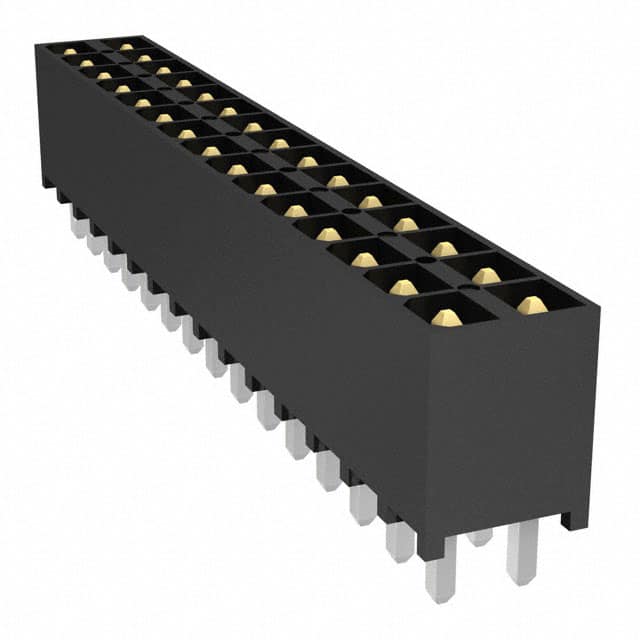

The Samtec IPT1-115-01-S-D is a 30-position, 2-row, through-hole shrouded header from the IPT1 series. It features a 2.54mm pitch and row spacing, making it suitable for board-to-board applications. The connector is shrouded on all four walls, providing electrical and mechanical protection for the male pin contacts.
The header is constructed with a black Liquid Crystal Polymer (LCP) insulator and phosphor bronze contacts with a 30.0µin (0.76µm) gold plating. It is rated for an operating temperature range of -55°C to +125°C and has a UL94 V-0 flammability rating. The part is designed for solder termination and uses a push-pull fastening type.
This connector is part of Samtec's Isolated Power Systems (IPT1) series, which offers individually shrouded contacts for reliable performance. It is lead-free solderable and suitable for a variety of board-to-board interconnection needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.39 | $5.39 |
| 28+ | $5.15 | $5.15 |
| 56+ | $5.05 | $5.05 |
| 504+ | $4.70 | $4.70 |
| 1,008+ | $4.11 | $4.11 |
| 2,506+ | $3.66 | $3.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 30 positions arranged in 2 rows.
The pitch is 2.54mm (0.100").
The mounting type is through hole.
The datasheet specifies a current rating of 5.9 A (2 pins powered).
The datasheet specifies a voltage rating of 700 VAC/990 VDC.
The operating temperature range is -55°C to +125°C.
The contact material is phosphor bronze with a gold plating thickness of 30.0µin (0.76µm).
